1/4" x 10' amada mechanical squaring shear

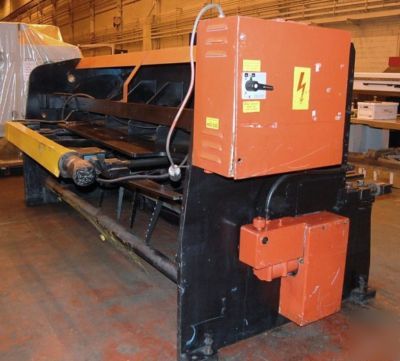

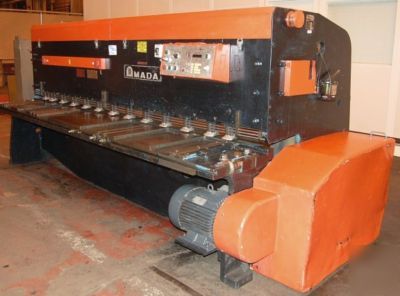

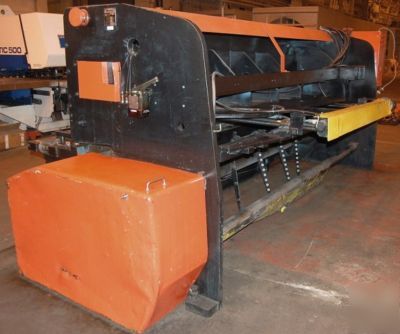

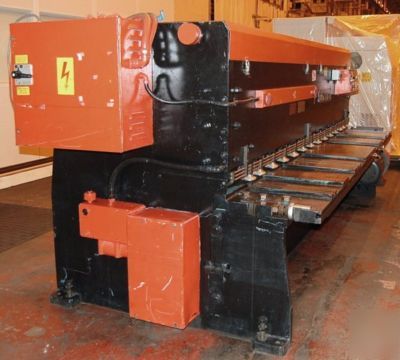

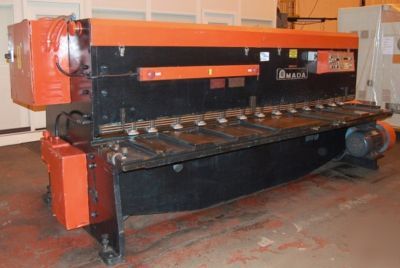

1/4" x 10' Amada Mechanical Squaring Shear
Maximum Shearing Thickness (Mild Steel) . 1/4"
Gap Depth ............................... 11.8"
Speed (Strokes/Minute) .................. 60
Back Gauge Range ........................ .39-39.37"
No. of Holddowns ........................ 13
Motor Size .............................. 15 HP
Approximate Weight ...................... 18,600 Lbs

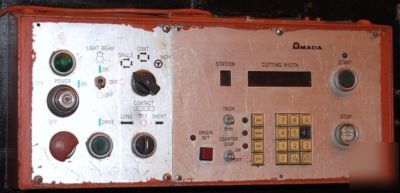

CNC Programmable Power Back Gauge
