#9748 - seneca falls r-o form relieving grinder

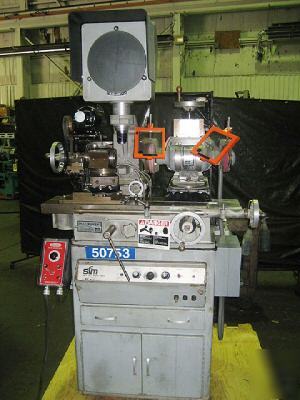

SENECA FALLS R-O FORM RELIEVING GRINDER
Grinding column cross travel 5-1/8"
Grinding spindle vertical travel 5-1/4"
Grinding spindle tilt (above and below) 25 degrees
Grinding spindle indexers 360 degrees
Maximum diameter between centers of form relieving fixture with 1-3/4" square center holding fixture 5-1/2"
Maximum length between centers of form relieving fixture with 1-3/4" sqaure center holding fixture 8"
Maximum collet capacity of form relieving fixture 2-1/2"

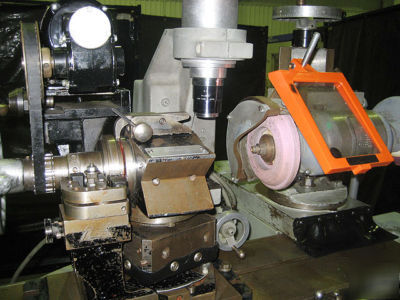

R-O Grinding wheelhead with 1/2 HP 3 phase motor. The motor column incorporates three major adjustments, 360 degree rotation, raise, lower and tilt.
Model R-O motorized large capacity universal form fixture

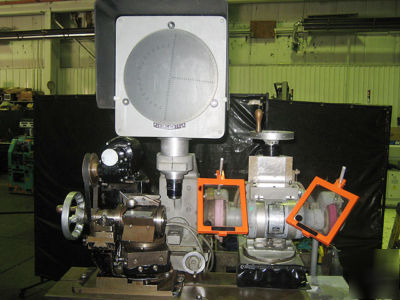

R-O 10" Diameter optical comparator screen mounted in a graduated protractor ring, unit is complete with a 5X lens
