Audio power amplifier 20W 2X TDA2003 - assembling kit
This audio frequency amplifier has been designed using two integrated circuit TDA2003 in bridge connection.
This step has the following parameters:
Output: 20 W at Ucc=14.4V / 3A and RL=2 OM.
Frequency band: 20 to 20000 Hz.
Power supply DC - 8 to 18 Volts.
To avoid any failure, connect the integrated circuits to a dissipating heatsink (heatsink not included)!!!
Overall dimensions PCB 46x34 (1.337"x1.812").

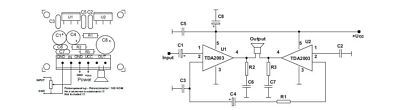

10. Circuit and wiring diagrams

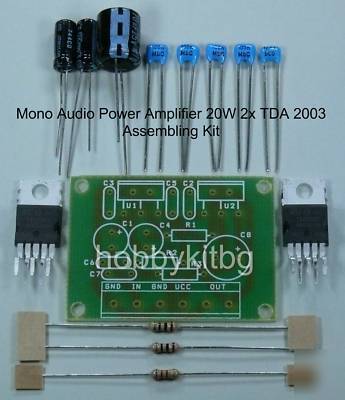

This item Assembling kit (NOT ready built). Look pictures !!!
This kit requires assembly and soldering !!!
- 1x Mono Audio Power Amplifier 20W 2x TDA2003 - Assembling kit + FREE Potentiometer.
- 1x Bulgarian and English Instruction Manual.
