> CD4015BCN national 16PIN dip (tube of 25PCS)

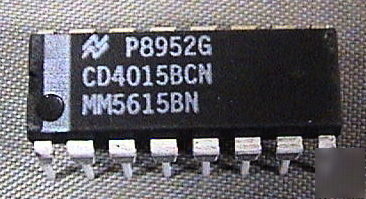

CD4015BCN national 16PIN dip (tube of 25PCS)
Tube of 25 CD4015BM/CD4015BC Dual 4-Bit Static Shift Register
CD4015BM/CD4015BC Dual 4-Bit Static Shift Register
The CD4015BM/CD4015BC contains two identical, 4-stage,
serial-input/parallel-output registers with independent
``Data'', ``Clock,'' and ``Reset'' inputs. The logic level present
at the input of each stage is transferred to the output of
that stage at each positive-going clock transition. A logic
high on the ``Reset'' input resets all four stages covered by
that input. All inputs are protected from static discharge by a
series resistor and diode clamps to VDD and VSS.
Y Wide supply voltage range 3.0V to 18V
Y High noise immunity 0.45 VDD (typ.)
Y Low power TTL Fan out of 2 driving 74L
compatibility or 1 driving 74LS
Y Medium speed operation 8 MHz (typ.) clock rate
Y Fully static design @VDD b VSS e 10V
Y Serial-input/parallel-output data queueing
Y Serial to parallel data conversion
