Extech h/duty pressure meter w/module PT30 + fluke hat

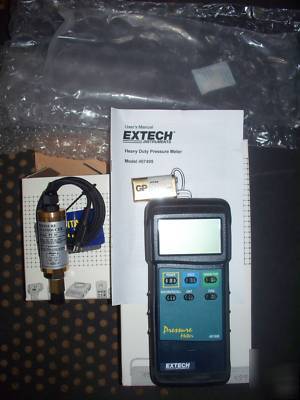

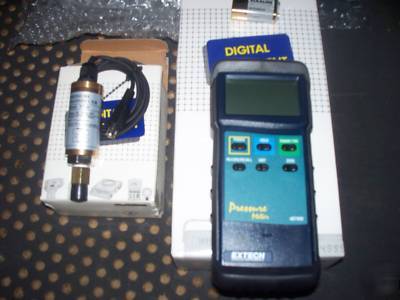

EXTECH 407495 Heavy Duty Pressure Meter w/ PRESSURE Tranducer EXTECH PT30
EXTECH 407495 with Interchangeable Transducers
Gauge/Differential Pressure Meter accepts transducers with ranges up to 150psi
* Accepts interchangeable transducers with ranges of 30, 75 and 150psi
* Stores range and calibration data for six pressure transducers
* 8 selectable units of measure with 0.25%FS basic accuracy
* Push button transducer selection
* Built-in RS-232 PC interface
This meter measures and displays pressure in eight (8) measurement units. Up to six (6) interchangeable transducers (sold separately) in varying ranges can be used with this meter. Special features include RS-232 PC Interface, Min/Max Memory, push-button Zero, Data Hold, and Auto Power-Off. Careful use of this meter will provide years of reliable service.
30, 75, 150, 300, 700, and 1500 max. psi (sold separately)
Bar, psi, Kg/cm , mm/Hg, inches/Hg, meters/H O, inches/H O, Atmosphere
Displayed reading can be held by front panel push-button
Lowest/Highest readings can be stored for later recall
Built-in RS-232 port for use with optional Windows data acquisition software
To conserve battery life, the meter turns OFF automatically after approx. 10 minutes (programmable over-ride).
Rectangular battery-life box appears on the left side of LCD.
7.1 x 2.8 x 1.3" (180 x 72 x 32mm)
Protective rubber holster and 9V battery
Extech PT30 Pressure Transducer
Pressure Transducer, Pressure Range 0.02 to 29 PSI
oduct SpecificationsPressure Transducer, Pressure Range 0.02 to 29 PSI ItemPressure Transducer Range0.02 to 29 psi Accuracy+/-1% of Full Scale Process Connection1/4" NPT Electrical ConnectionsSpecial Lead Length (In.)39 Operating Temp.32 to 140 F Max. Pressure (PSI)45 For Use With1PX58 Manufacturers Warranty Length1 Year
This item is BRAND NEW CONDITION JUST TAKEN OUT OF BOX FOR PICTURES condition .
