New paragon defrost control, 8145-20, 40AMP, 2 hp,
Time Initiated, Remote Temperature or Pressure Terminated Defrost Control
1 to 6 Cycles per Day, Minimum of 4 Hours Between Successive Defrost Cycles
Back-up Mechanical Defrost, Protects Against Sensor Malfunction
* Defrost commercial frozen food cabinets, dairy, delicatessen, and vegetable display cases, and walk-in coolers.
* Paragon 4001-0G, Paragon 4004-71G, Paragon 8045-0, Paragon 8045-20, Paragon 8047-20 are UL Listed. Paragon 8045-0, Paragon 8045-20, Paragon 8047-20 are CSA Certified. Paragon 9145-00 is UL873 NSF Certified.
* Time-Initiated, Remote-Temperature, or Pressure-Terminated Defrost Controls
* Work with external temperature or pressure sensor.

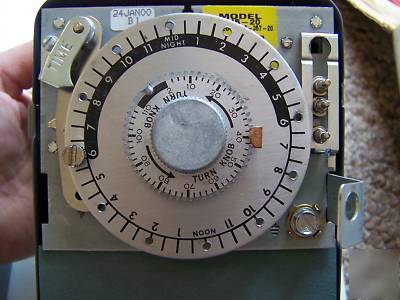

* Choice of 3 contact arrangements for electric heat, compressor shutdown, or hot gas defrost. Defrost cycles: 1 to 6 per day, at least 4 hrs. between cycles. Dial overlay changes defrost time from even- to odd-numbered hours. Backup defrost termination: 4 to 110 min. in 2-min. increments. Case has heavy steel enclosure with padlock hasp.
Defrost Timer, Input Voltage 208/240 Volts, Maximum Load Current 40 Amps, Switch SPDT, Pilot Duty Power Rating @ 120-240V 690 Volt Amps
