Omron E3X-NM11 4 channel teaching optical fiber sensor

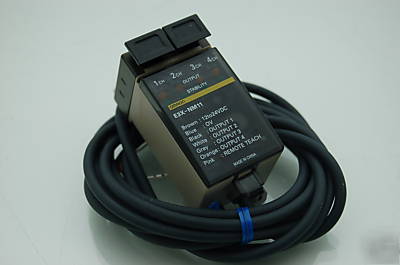

Omron E3X-NM11 4 Channel Teaching Optical Fiber Photoelectric Sensor
This unit was pulled from a working environment and appears to be in very good working condition, however it is untested.
12 to 24VDC 10%, ripple (p-p) 10% max.
500 s max. at rated sensing distance
NPN open collector, load current: 100mA, residual voltage: 1V max.
Off-delay timer (fixed to 40ms) (independent channel)
Teaching Confirmation Function
Indicator (red/green LEDs) and buzzer
Pink and blue (0 V) wires are short-circuited when remote input is ON.
(0 V short-circuit current: 1 mA max.)
Pink and blue (0 V) wires are not short-circuited when remote input is OFF. (Open or 9 V min.; max. input voltage: 24 V)
Response time is 0.5 ms max. when remote input is OFF.
Light ON and Dark ON switch selectable
1. It is possible to disable the OFF-delay timer function by using the switch setting.
Manufacturer data sheet (PDF) is available here.
