Zero-max ZX1 variable speed drive zeromax zero max ccw
ZERO-MAX ZX1 Variable Speed Drive ZeroMax Zero Max CCW

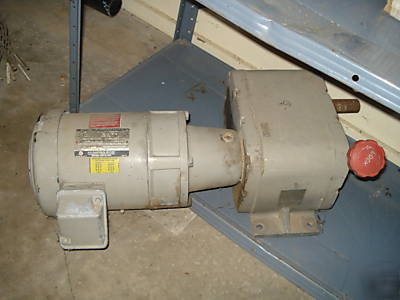

This is a used in great working condition ZERO-MAX ZX1 MECHANICAL VARIABLE SPEED DRIVE. LIST PRICE IS $1640. Get a great used one for far less.
Speed Range with 1800 RPM Input - 0-400RPM.
Output Shaft Rotation - Counter-Clockwise CCW.
From the ZERO-MAX Website (http:// /products/drives/drivesmain.asp):
Zero-Max Adjustable Speed Drives
Designed for use on a wide variety of machinery, Zero-Max Drives may be used as primary or secondary drives.
The speed range is infinitely adjustable from 0 to 1/4 of the input speed under full rated load. Reversible models are available with reverse and neutral settings.
They are available in five sizes providing constant torque of 12 to 200 inch pounds throughout the speed range. To achieve the exact performance characteristics you require, Zero-Max Adjustable Speed Drives are available with optional gearheads, motors and C-flange adapters. Some Zero-Max Drives may be purchased with standard electric motors or they may be connected to any rotating power source up to 2000 RPM.
Easy to operate with lever or screw control - Repeatable
Accepts input to 2,000 RPM. Ideal secondary controller
Delivers constant torque throughout the speed range
Often usable without additional speed reduction
Permits slow or fast, small or large speed changes
Ideal for dancer applications/ constant speed changes
No "wear-in" period/constant speed operation
World's most versatile, economical secondary drive
Ideal for users and original equipment manufacturers
Use in most atmospheres - can be mounted in any position
0-400 RPM speed range with 1800 RPM input.
How the Zero-Max Adjustable Speed Drive Works
The input shaft drives four or more one-way clutches that move back and forth, each rotating the output shaft a partial turn for each stroke.
Since one rotation of the input shaft causes each clutch to move back and forth once, the output shaft will be urged once per clutch for each input revolution. Therefore, with four clutches working in series and an input of 1800 RPM, the output shaft is urged 7200 times per minute (1800 x 4) or 120 times per second (7200 60).
As the control arm moves from zero toward maximum, the amount that each clutch urges the output shaft becomes greater - thus increasing the output rpm.
If you have any other questions, please email me and I will write you back promptly.
