Millermatic 350 mig welder # 907299

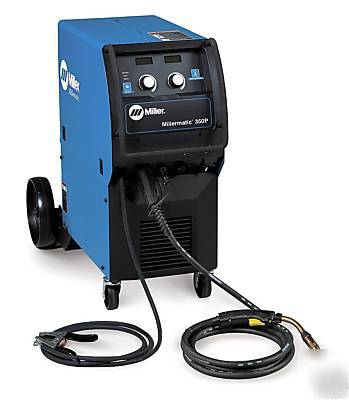

PART # 907299 The image http:// /images/MILLERMATIC%20350%20MIG%20(%20MED).jpg cannot be displayed, because it contains errors.
Now, on top of legendary Millermatic simplicity, you have inverter technology and pulsed-MIG capability. That opens the door to even better weld quality and improved productivity on all metals, including thin-gauge aluminum and stainless steel.
Single- and three-phase input power with Line voltage compensation for constant output with fluctuations to the input power.
Digital front panel/user controls makes process setup and weld parameters easy to adjust.
Operational information and weld parameter settings along with extra storage for contact tips and drive rolls conveniently located behind flipdown door.
Superior Aluminum Performance with direct connection for optional XR pushpull guns or Spoolmatic 15A/30A spoolgun. With Miller s exclusive Gun-on-Demand, simply pull the trigger for the gun to be used and you're ready to weld.
Large storage area for manuals, gloves, tools etc. and removable gun and cable holder.
Industrial, 4-roll wire drive system features two easy-to-set, scaled, tension adjustments and quick-change reversible drive rolls for .035 and .045 wire.
Welds materials 22 gauge up to 1/2 in thick.
Power source is warranted for 3 years, parts and labor. Original main power rectified parts are warranted for 5 years. Gun warranted for 90 days, parts and labor. Fan-On-Demand cooling only operates when needed, reducing power consumption and contaminants inside the unit.
* NEW! 200/230/460 Volt model NEW! .045 Metal Core Pulse Program NEW! Adjustable crater feature optimizes crater size for steel, stainless steel, aluminum and metal-core applications. NEW! Crater Time Delay allows deactivation of crater feature for tack or small welds. Run-in adjustment for MIG, push-pull and spool guns. Built-in 2-minute spot/stitch timer. Pre-flow and post-flow adjustment. View actual welding amperage/voltage during welding, and 5 seconds after arc has shutoff. SharpArc controls welding arc cone width in pulsed MIG welding mode. Inductance control customizes weld output characteristics in MIG welding mode.Built-in 2-minute spot/stitch timer.
Tip Saver Welding output shuts off if tip is shorted to work surface for more than 1 second. If trigger is pressed and no arc is detected after 3 seconds, the welding output will be shut off and the unit will go into JOG MODE for feeding wire to the gun.
Gas Saver Gas will automatically shutoff after 1 minute when no arc has been detected. -Wire Saver Wire drive will automatically shutoff after 2 minutes when no arc has been detected.
Built-in pulsed MIG programs (Millermatic 350P only) .035 and .045 in for mild or stainless steel .035 and .047 in for 4000 and 5000 series aluminum All programmed information is stored for MIG, pushpull and spoolguns, and is restored after each power up.
C-4012 Roughneck MIG gun Industrial power cord (without plug) for single- or three-phase Work cable with clamp Factory-installed gas solenoid Argon mix regulator/flow meter Factory-installed, low-mounted running gear/cylinder rack Drive rolls and contact tips
Rated Output 300 A at 32 VDC, 60% Duty Cycle, 1- or 3-Phase Input Power Amperage Range 25 400 A Wire Feed Speed 50 700 IPM (1.3 18 m/min) MIG Gun 50 800 IPM (1.3 20 m/min) Spool Gun/Push-Pull Gun
