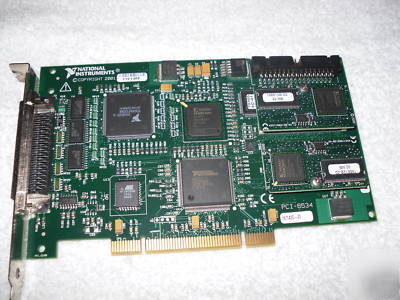

National instruments ni pci-6534 board
The National Instruments PCI-6534 is a high-speed, 32-bit, parallel digital I/O interface for PCI. The NI PCI-6534 performs pattern I/O and high-speed data transfer using a wide range of handshaking protocols at speeds up to 80 MB/s through onboard memory. It features user-defined power-up states, start and stop triggering, pattern matching, and change detection. You can operate the 32 lines as individually configurable single-line I/O or as 8-, 16-, or 32-bit ports for pattern I/O and handshaking. The board comes bundled with the NI-DAQmx driver software and Measurement & Automation Explorer (MAX) configuration software, so you can interactively configure your device and view test panels for interactive measurements.
* 20 MHz maximum clock rates for continuous pattern I/O or handshaking
* 80 MB/s maximum transfer rate (8-, 16-, or 32-bit transfers)
* 32 digital I/O lines (5 V TTL/CMOS)
* 32 MB onboard memory per data path
* Start/stop triggering, pattern matching, and change detection
* NI-DAQmx driver compatible with NI LabVIEW, LabWindows /CVI, C/C++, Visual Basic, and .NET
* National Instruments NI PCI-6534 Board
* NOTE: No calbes are supplied with this card
* Software, Cables and Support can be found on the National Instruments website
