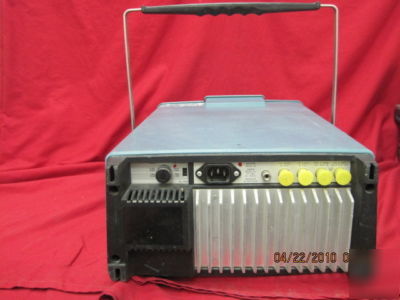

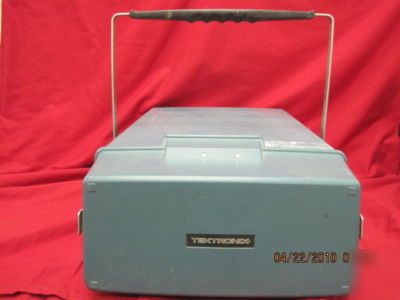

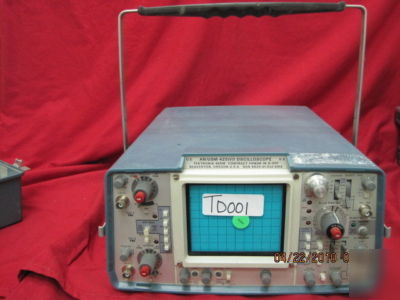

Tektronix 465M 100 mhz 2 ch. oscilloscope TD001
* Bandwidth; rise time: DC to 100 MHz; 3.5 ns
* Vertical deflection: 5 mV/div to 5 V/div
* Horizontal Deflection: Time Base A - 0.05 s/div to 0.5 s/div (1-2-5 sequence) - X10 mag extends max sweep rate to 5 ns/div; Time Base B - 0.05 s/div to 50 ms/div (1-2-5 sequence) - X10 mag extends max sweep rate to 5 ns/div
* Display modes: Ch 1, Ch 2 (normal and inverted), alternate, chopped
* Max Input voltages: DC Coupled 250 V (dc + peak ac), 500 V (p-p ac at 1 kHz or less); AC Coupled 500 V (dc + peak ac), 500 V (p-p ac at 1 kHz or less)
* A Trigger Modes: normal, automatic, single sweep
* B Trigger Modes: B runs after delay time, B triggerable after delay time
* A Sources: norm, Ch 1, Ch 2, line, external, external divided by 10
* B Sources: starts after delay, norm, Ch 1, Ch 2, external
* Ambient Temperatures: operating, -15 C to +55 C; non-operating, -55 C to +75 C
* 110 or 220 VAC, 50/60 Hz operation
