Taylor 9306 dual temperature infrared/thermocouple

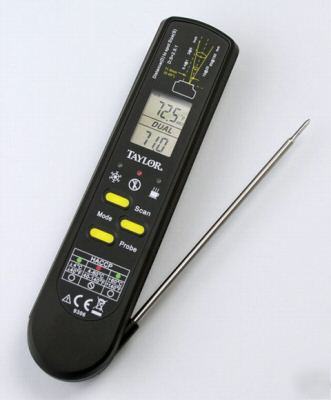

Taylor 9306 Commercial Waterproof
Dual Temperature Infrared/Thermocouple Thermometerl
The Taylor 9306 Waterproof Dual Temperature Infrared/Thermocouple Thermometer is part of Taylor's Five-Star Commercial line of kitchen products, which are designed for accuracy, readability, and reliability. The 9306 combines two types of thermometers in a single compact instrument. One is a non-contact infrared thermometer, and the other is a rapid-response thermocouple probe thermometer that folds out for use. You can use only one thermometer mode at a time, but you can change the mode whenever you want. This high-quality, professional-grade thermometer is designed for commercial use (such as food service applications), and you'll find it ideal for home use as well.
* Temperature display: 4-digit LCD
* Measuring range: -67 F to +482 F ( -55 C to +250 C)
* Operating range: +32 F to +122 F ( 0 C to +50 C)
At -27 F to +32 F (-33 C to 0 C): +/-2 F +/-0.1 (+/-1 C +/-0.1 )
At +32 F to +149 F (0 C to +65 C): +/-2 F (+/-1 C)
At +149 F to +482 F (+65 C to +250 C): +/-1.5% of reading
Distance to spot (D/S) ratio: 2.5 to 1
* Emissivity: factory-set to 0.95, user-adjustable from 0.10 to 1.00 in increments of 0.01
Thermocouple Probe Thermometer:
* Thermocouple: K type, grounded
* Measuring range: -67 F to +626 F ( -55 C to +330 C)
Below +23 F (-5 C ): +/-2 F (+/-1 C)
At +23 F to +149 F (-5 C to +65 C): +/-2 F (+/-1 C)
Above +149 F (+65 C): +/-1 of reading
* Power requirements: two AAA (1.5V) batteries, alkaline recommended
* Battery life: 40 hours typical, minimum 30 hours of continuous use
* Auto power-off (in normal operation): after 15 seconds
* Length with probe folded in: 6-1/4 inches (159 mm)
* Length with probe extended: 10-7/8 inches (276 mm)
* Probe length: 4-7/16 inches (113 mm)
* Width: 1-1/2 inches (38 mm)
* hickness: 7/8 inch (22 mm)
* Weight with batteries: 3.5 ounces (98 grams)
The 9306 has a useful HACCP Check feature that indicates critical food temperature zones. HAACP stands for Hazard Analysis and Critical Control Point, and the USDA's HACCP laboratory testing programs help ensure the safety of our meat, poultry, and egg products supply. The HACCP Check feature consists of icons and LEDs plus an HACCP temperature zone reference table. A lighted green LED above the snowflake icon indicates a safe cool or frozen condition below 40 F or 4 C. A lighted green LED above the steaming cup icon indicates a safe holding temperature above 140 F or 60 C. A lighted red LED above the slashed circle and fork icon indicates that the temperature is within the HACCP danger zone of 40 F to 140 F or 4 C to 60 C. Under certain conditions, the 9306 displays visual diagnostic messages. If a temperature being measured is outside of the range of the 9306, the display indicates either Hi or Lo. If the ambient temperature is rapidly changing or is outside of the 9306's operating range, or if other error conditions occur, error (Er) messages appear in the display. The instructions explain what to do in case of an error message. The 9306 also displays one of three icons that indicate the battery condition. Battery OK (measurements are possible), Battery Low (measurements are possible), or Battery Exhausted (measurements are not possible). Although the 9306 is designed primarily for cooking and food service applications, it is certainly not limited to these uses. An infrared thermometer such as the one in the 9306 is great for hard-to-reach and inaccessible locations, so long as temperatures in those locations are within its measuring range. In addition to operating instructions and the preinstalled AAA batteries, the Taylor 9306 Waterproof Dual Temperature Infrared/Thermocouple Thermometer comes with a padded vinyl carrying case for transportation and storage. This product is covered by a Taylor 1-year limited warranty
