Validyne CD280 multi-channel carrier demodulator

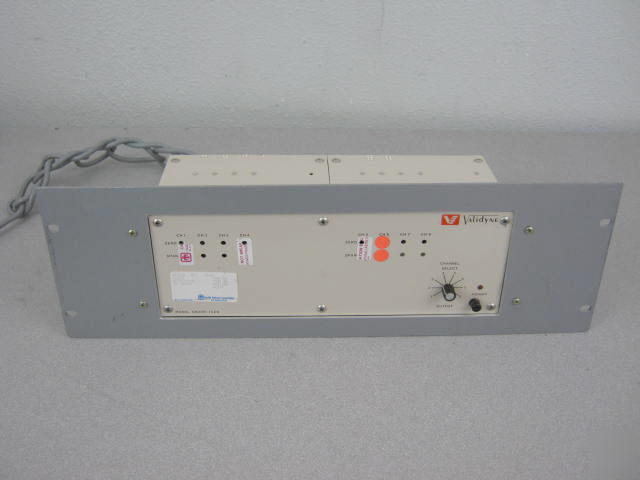

Validyne CD280 Multi-Channel Carrier Demodulator
ITEM DESCRIPTION: Used, powers up - good condition.
ACCESSORIES: None. No manual, cables, or any other accessories. Note: Manual available for download in pdf format.
The CD280 Carrier Demodulator is a complete four channel system in a small package which houses a plug-in power supply and four carrier demodulator circuit boards. The power supply provides regulated 5 Vac 5 kHz carrier power for Variable Reluctance and LVDT trnasducers, and the carrier demodulators demodulate and amplify the input signals to a 10 Vdc full-scale output. Zero and span adjustments are available for each channel. The system operates from 115 Vac, 50 to 400 Hz, line power.
The low impedance sine wave excitation allows operation with transducers located over a thousand feet from the CD280. The high level DC output can be fed to remote indicators and recorders. The excitation supply and all outputs are protected from short circuits. Input/output connections are easity made through the screw terminals on the rear of the case.
The modular design permits incremental additions to the basic four channel configuration as requirements dictate, up to a total of eight channels; by adding a second housing and plugin demoodulator boards.
The CD280-dual is an eight channel system consisting of two 4 channel units with an integral panel..
