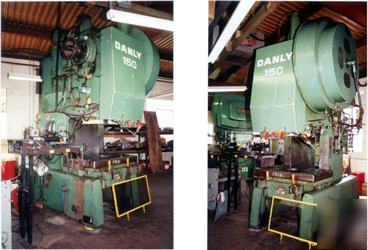

150 ton obi-g danly o.b.i. single geared press
150 Ton OBI-G DANLY O.B.I. Single Geared Press, S/N 15060470179,New 1979
Capacity: 150 Tons (1/4 above bottom)
Crankshaft diameter at main bearings: 6 1/16"
Crankshaft diameter at crank pin: 9"
Bed bolster area and thickness: 50" x 30' x 41/2"
Slide bolster area and thickness: 30" x 24" x 2"
Air cushion specs: Type AL-20-4, S/N 79604801
Lincoln Centro-Matic Auto.lubrication system
12" x 12" Mdl.8212 Plessey L.H. air feed/straightener
Dual palm buttons with remote electric foot control
15 H.P. 3/60/230-460 volt main drive motor with controls
Approx. total weight: 38,100 lbs.
