25.5" swing okuma impact 4-axis cnc turning center

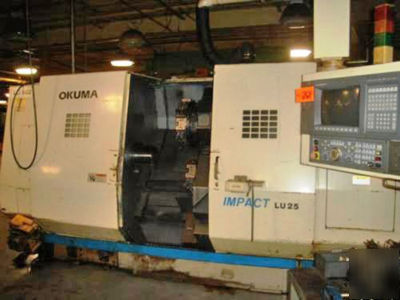

ONE Preowned OKUMA IMPACT 4-AXIS CNC Turning Center
MDL. LU-25, S/N 0710-0137, MFG 1999
SWING OVER BED.................................................................. 25.5"
SWING OVER CARRIAGE...................................................... 16.5"
SWING OVER CROSS SLIDE................................................. 12.9"
DISTANCE BETWEEN CENTERS.......................................... 25.6"
X-AXIS TRAVEL: UPPER TURRET......................................... 8.2" + 3.5"
LOWER TURRET.......................................................... 5.12" + 2.5"
Z-AXIS TRAVEL: UPPER TURRET......................................... 28.5"
LOWER TURRET.......................................................... 25.9"
BAR CAPACITY....................................................................... 3.15"
SPINDLE SPEED RANGE....................................................... 65-3500 RPM
SPINDLE HOLE DIAMETER.................................................... 3.94"
PRICE: ON SITE, (PHILADELPHIA, PA) .. . $59,500.00
