10X universal prototyping white pcb 69X50 w/ proto smt
10x Prototyping PCB 69 x 50mm w/ 452 Pads + SMT
Sale is for 10pcs of WHITE prototyping PCB with 1.27mm/0.05" pitch SMT pads (SOIC). We also carry this same board in RED, BLUE and GREEN.
* Combined through-holes and SMT
* Clear marking on the top side, numbered columns and rows.
* Single sided for easy component remove.
* 1mm thick, can be cut with scissors.
* Fits into Tyco SnapTrack 2TK seris rail.
* Columns A-B, C-D-E, F-G-H, K-L-M, N-O-P and Q-R are interconnected.
* Columns A and R have 0.9mm holes, rest are 0.8mm.

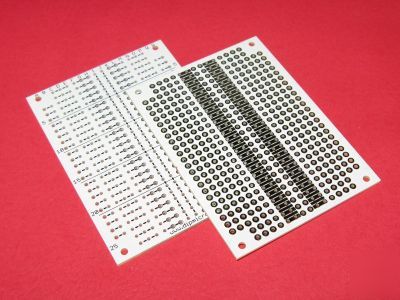

PB1 Universal PCB PB1 Universal PCB
The PCB contains 1.27mm (0.05") SMT pads broken out to through-hole pads.
SnapTrack is a non-conductive, rigid extruded PVC channel for mounting assemblies and custom built boards. PCBs snap-in from front and are held securely by integral ribs that absorb shock when PCB is flexed. Removal of PCB is very easy as well.
PB1 easily snaps in Tyco SnapTrack 2TK channel creating a modular development platform.
PB1 in SnapTrack PB1 in SnapTrack
