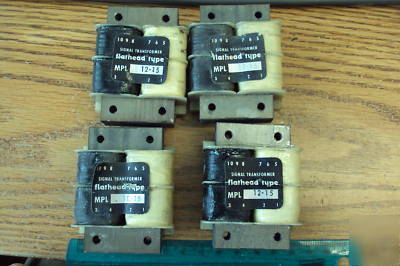

4QTY power transformer signal transformer mpl-12-15
4QTY POWER TRANSFORMER SIGNAL TRANSFORMER MPL-12-15
http:// /Data/Datasheets/MPL.pdf
http:// /ProdPage-MicroprocessorApps.asp?pView=2&pPart=MPL-12-15
Dielectric Strength - 1500 Vrms Hipot
Primaries - Dual primaries, 115/230 V nominal, 50/60 Hz,
input range 100 V to 130 V or 200 V to 260 V
Secondaries - Dual complementary outputs, 5 VDC with 12 VDC
Electrostatic shield - not necessary due to split bobbin construction
Height - 0.85 and 1.065 high
Insulation System - Class B, 130 C, UL 1446 E66312
