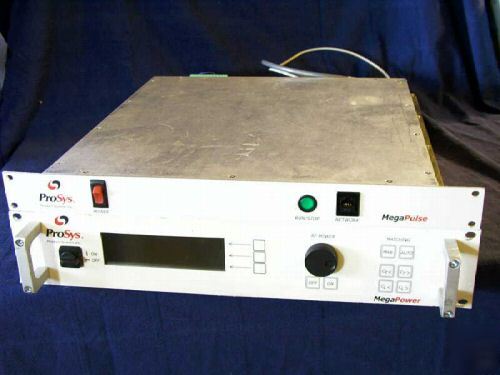

Dressler advanced energy prosys mega pulse rf generator

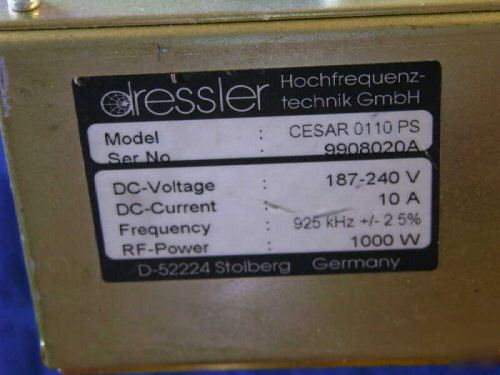

Input: 187-240VAC 10A Single phase

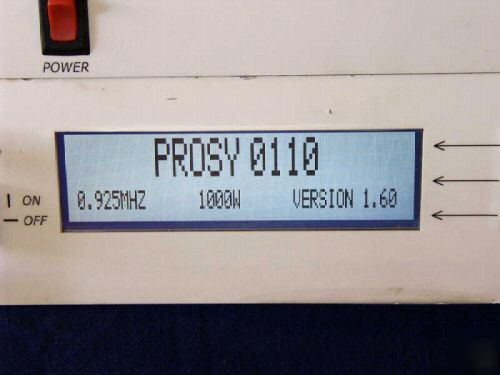

Output: 1kW @ 925kHz +/- 2.5% via N type connector 50 ohm

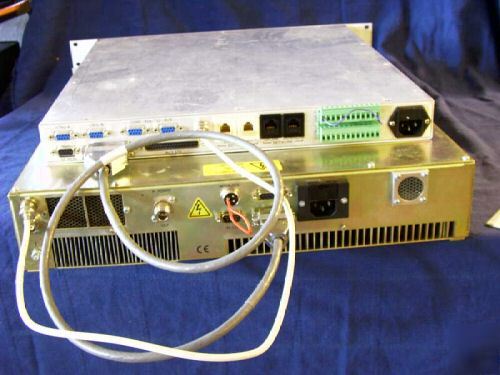

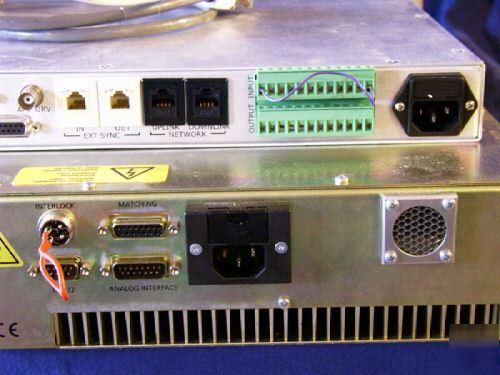

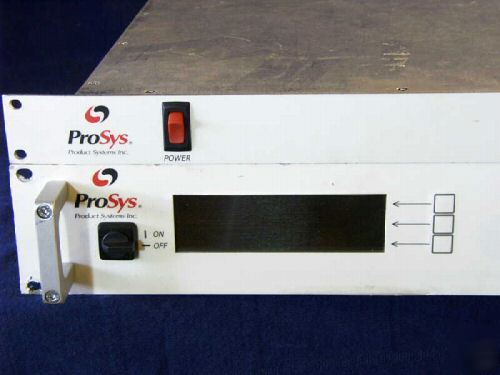

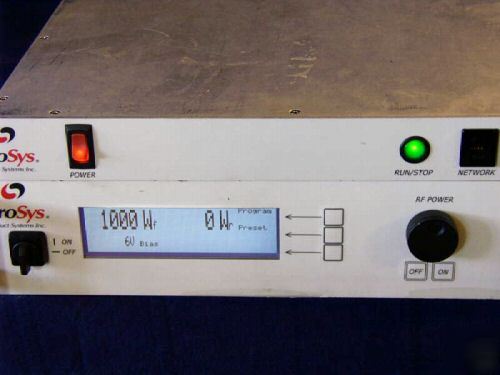

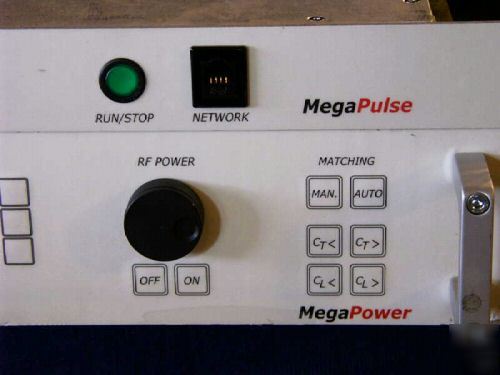

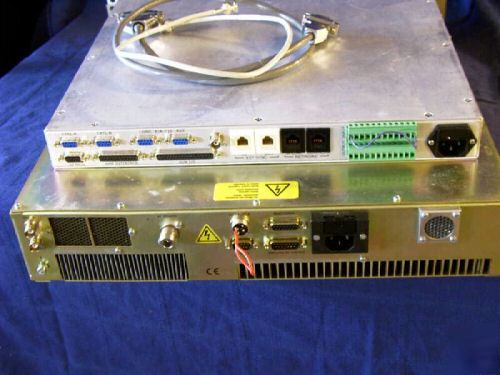

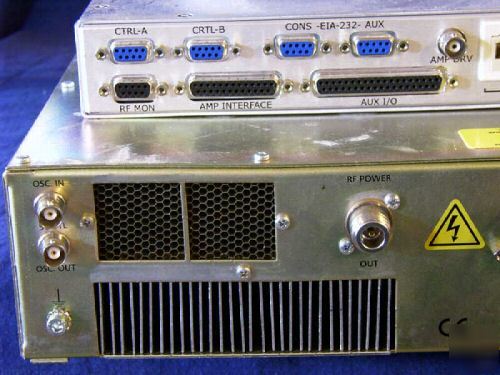

This can be operated from the front panel or remotely through the MegaPulse. If operated from the mega pulse, the generator is run remotely, or if the interface cable is disconnected, then the generator can be run from the front panel. The Mega Pulse sends the Oscillator signal to the Mega Power unit through the BNC patch cable. The signal can be operated remotely or from the front panel non-latching power button on the Megapulse.
-air cooled with no need for water cooling
-built in RF Matching Network controller
-pulse option with variable frequency and duty cycle
This was designed to be used with ultrasonic transducers for wafer cleaning, but can be used in any application that has a 50ohm impedance.
Check out the ProSys website for more info at http:// /products/megaduo.php , the following is from this link.
The MegaDuo electronic package was designed for the user who requires reliable, high power RF with network and/or host control for driving a single array in Continuous Wave mode. This product offers Class D/E RF amplifier technology. The MegaDuo electronics modules pack powerful process capabilities into a small, low cost package.
* Continuous Wave with Pulsing
* Ethernet, Analog or Serial Communication
6,047,246 Computer Controlled Ultrasonic Cleaning System
6,549,860 Method and Apparatus for Tuning a Megasonic Transducers
* 1 KW class D/E RF Amplifier, 400 KHz, 1, 2 or 3 MHz
* Air-cooled, 85%+ efficiency
* Stand alone with RS232 or Analog interface capabilities
* Interfaces with MegaPulse for maximum process versatility
* Motorola cold fired embedded processor controller
* Ethernet, RS232, and RS485 compatible
* Windows GUI optional interface
Check the AE website at http:// /en/Cesar_RF_Generators.html , the following is from that site.
The robust and versatile Cesar platform offers exceptionally consistent RF power-delivery performance, as well as a diverse selection of models, each with a unique set of features and capabilities (2, 4, 13.56, 27.12, and 40.68 MHz; 0.3 to 5 kW; with a variety of user interfaces and input options). This enables you to choose a unit suited specifically to your application without lengthy custom-generator lead times.
High-quality components and a low part count maximize reliability and product lifetime, making the most of your investment and your process productivity. A comprehensive, yet highly intuitive operating menu, accessible on the unit s active front panel and displayed on a large LCD, provides unparalleled ease increasing operator efficiency and minimizing training costs.
* Enhanced operational ease and flexibility
* Customized performance without custom-unit lead times
* Long-term ease of use and cost savings
* World-class service and support
* Compact, streamlined design
* Standard platform packaging
* High efficiency less heat generated
* 200 and 400 VAC input options
* RS-232, Ethernet, and Profibus communication
* Convenient, comprehensive operating menu
* CEX (phase synch) operation mode
* SEMITM compliance (meets or exceeds standards)
