Hp agilent 355C vhf manual step attenuator dc to 1GHZ
HP AGILENT 355C VHF MANUAL STEP ATTENUATOR DC to 1Ghz
Save $$$ right here at GetThatPart!

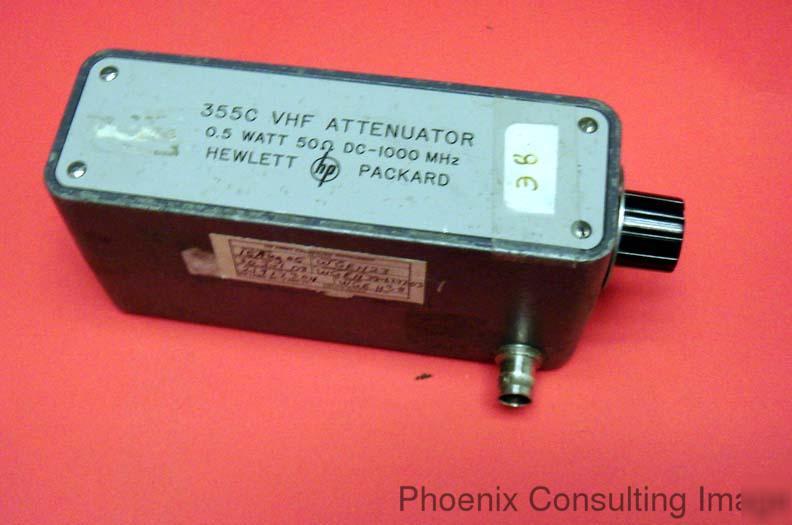

Acquired from the US Government. Actual item is shown. Only what is shown is included. Guaranteed functional. Last calibrated on 8-15-05, shows good through 7-30-09.
* We also take the time to thoroughly test the units we are selling
HP/Agilent 355C Manual Step Attenuator, DC to 1000 MHz, 0 to 12 dB, 1 dB steps
The Agilent 355C dc to 1000 MHz manual step attenuator provides precision step attenuation in 1 dB steps from 0 to 12 dB. Attenuator sections are inserted and removed by cam-actuated microswitches which keep lead lengths short. This design minimizes stray capacitances and inductances, and keeps phase shift to a minimum. The Agilent 355C is a compact and rugged unit in which the component parts are rigidly positioned and well-shielded so that neither stray pickup nor signal leakage is a problem. It may be connected with the 355D in series to provide precision attenuation in 1 dB steps from 0 to 132 dB. Either terminal may be connected as input or output.
* Frequency Range: dc to 1 GHz
* Attenuation Range: 0 to 12 dB, 1 dB steps
* Insertion Loss at 0 dB: 0.2 dB + 2.3 dB/GHz
* Maximum SWR: 1.2 to 250 MHz, 1.3 to 500 MHz, 1.5 to 1 GHz
* Repeatability Life: 0.03 dB maximum, 0.5 million cycles per section
* Maximum RF Input Power: 0.5 W (average), 350 W (peak)
* Connector Type: BNC female, optional Type-N female and TNC female
HP/Agilent 355C Standard Accessories
Operations and Service Guide
Attenuator panel mounting capability
Delete attenuator panel mounting
Coax 10 dB step attenuator, 600 ohm impedance, 0-120 dB, DC-100kHz
VHF coaxial step attenuator 0-120 dB
