Ifr fm-am-1200S communications monitor analyzer 1GHZ

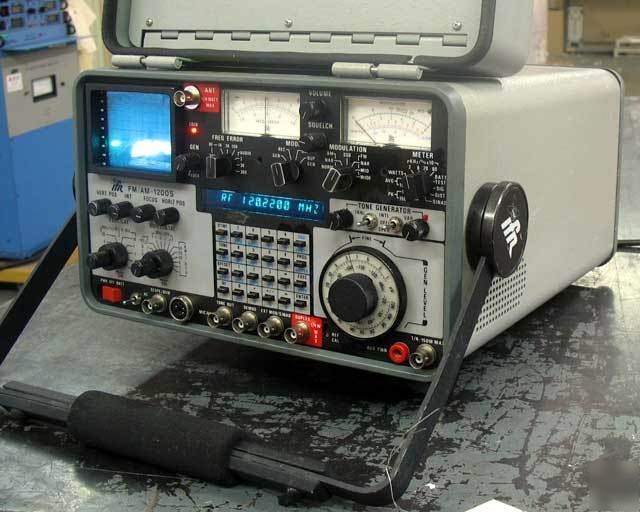

IFR FM-AM-1200S Communications Monitor Analyzer 1GHz
Marconi Aeroflex, Comes w/New Battery
NIST CAL/CERT 90 Day Warranty w/Manual on CD-ROM
The FM/AM-1200 is a processor controlled, digitally synthesized FM/AM/SSB receiver and generator, with an integral oscilloscope/ spectrum analyzer. The receiver is a triple conversion superheterodyne receiver capable of receiving signals from 250 kHz to 999.9999 MHz. The signal generator is capable of producing modulated or unmodulated RF signals from 250 kHz to 999.9999 MHz. A function generator will produce six functions (Ramp, Triangle, Square, Sine, DTMF and Pulse) with ranges from 10 Hz up to 10 kHz and one function up to 30 kHz. A duplex generator can produce a signal up to +/- 49.99 MHz from the received frequency. The oscilloscope and spectrum analyzer utilize a common CRT. Bandwidth of the oscilloscope is DC to 1 MHz and the dynamic range of the spectrum analyzer is from -30 dBm to -100 dBm.
* Frequency Range: 250 kHz to 999.9999 MHz in 100 Hz increments.
* Sensitivity Level: 2 V (1 MHz to 1000 MHz, FM narrow).
* RF Output Power: -127 dBm to -20 dBm (10 dB steps with 11 dB range vernier into 50 Ohms).
* Dimensions: 13" x 18" x 8"H
Reconditioned, Calibrated, and guaranteed to meet manufacturer specifications
Calibration in our laboratory by one of our expert certified technicians.
Traceable NIST CAL/CERT
(service and support available after warranty period)
5 day ROR minus s/h both ways
the item used with NIST CAL/CERT, 90 day warranty and 5 day ROR minus s/h both ways
Operation's manual on CD-ROM
no other accessories, manuals, modules, probes, orig. packing, etc. unless specified
