Kramer electronics vs-84 8X4 composite audio switcher
Manufacturer: Kramer Electronics Model/Part #: VS-84

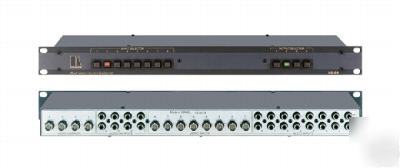

The Kramer VS-84 is a high quality mechanical 8x4 switcher for composite video using BNC connectors, and stereo audio using RCA connectors. It is designed to route any one of up to eight sources to any one of four outputs. Audio is always switched together with the corresponding video signal. Note that the VS-84 can only provide one video and audio signal path at any given time.
It cannot distribute a signal to multiple outputs simultaneously. High quality switching components and carefully designed PCB s provide excellent isolation between inputs, and the passive design of the VS-84 makes it suitable for other signal formats. Also, its unpowered design can be an advantage in applications where various regulatory compliance would otherwise be required. Unselected video inputs are terminated via 75? resistors.
