New 125 ton, 9 oz. bury injection molding machine '93

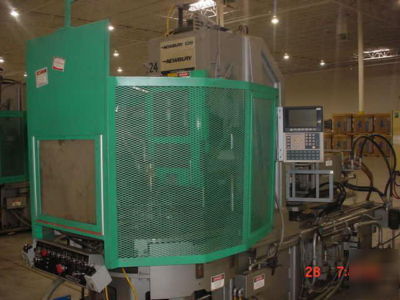

125 Ton, 9 Oz Newbury 4-Station Rotary Press
Mold Clamping Force ........................ 125 Ton
Platen Size .............................. 12" x 16"
Rotary Table Size .............................. 42"
Maximum Mold Space .................... 10" x 23.75"
Daylight-Closed (minimum) .................... 7.50"
Daylight-Open (maximum) ..................... 15.50"
Center-Line of Injection ........ 4.5"-9" Adjustable
Injection Stroke ................................ 8"
Screw Diameter ............................... 1.75"
Screw L/D: .................................... 20:1
Table Rotation ........................... Clockwise
Motor ......................................... 25HP
Dimensions .................. 14.5"L x 4.3"W x 8.6"H
