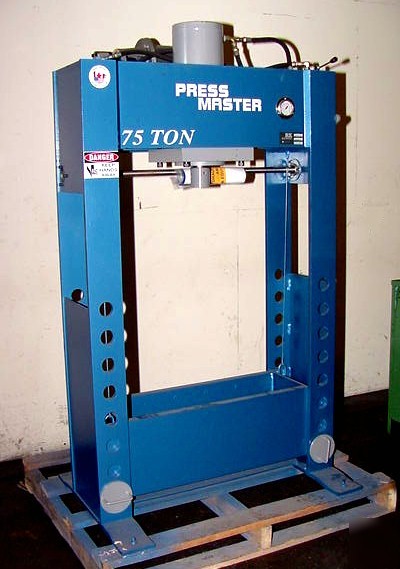

New 75 ton pressmaster h-frame electric hydraulic press
NEW 75 TON PRESSMASTER H-FRAME ELECTRIC HYDRAULIC PRESS
75 TON PRESSMASTER H-FRAME HYDRAULIC PRESS
RATED CAPACITY, TONNAGE........................... 75
BORE.............................................. 7"
RAM SPEED (INCH/MIN.) ADVANCE..................... 8
PRESSING ................... 8
RETURN ..................... 12
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 32"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 12"
MAXIMUM DISTANCE FROM BED TO RAM ................. 31"
WEIGHT ........................................... 2,000#
- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
- PANEL MOUNTED PRESSURE GAUGE
- SAFETY VALVE FOR OVERLOAD PROTECTION
- BALDOR 3 HP, 230/460 VOLT MOTOR, THREE PHASE
