New mks/hps 1.5" ss vacuum line heating system+extras
New MKS/HPS 1.5" SS Vacuum Line Heating System+Extras

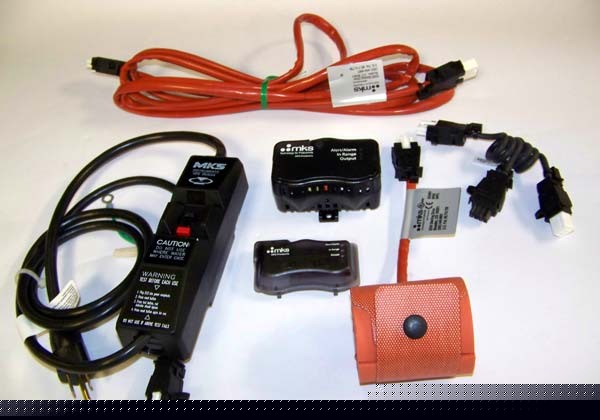

This is a New MKS/HPS 48 Series Vacuum Line Heating System. The kit includes the Heating Jacket, Controller, Power Cord, Communications Module, Cable Extender and Standard Tee. This assembly allows temperature to be controlled in industrial vacuum line systems. This item does not include software or manuals. Cosmetically, the item is new and in flawless condition. The photos show a typical lot. Only what is shown in the photos is included.
* Pre-Set Temperature Set Points 150 C (302 F); or 105 C (221 F)
* Exterior Range Temperature Ambient to 85 C (185 F) (dependent on set point)
* Interior Range Temperature Ambient to 185 C (365 F)
* Foam Thickness: 0.5 in. (12.7 mm)
* Materials: Molded silicone foam, fiberglass reinforced silicone, Teflon insulated wire
* Connectors: Molex Mini-Fit Jr.
* Weight Range 0.5 to 6.2 lb (0.73 to 2.8 kg)
* Product Safety UL /C-UL Listed, CE,Semi S2
* Power Requirements 100-240VAC input
* Relay Contact Rating SPDT, 2 A @ 50 VAC resistive, 1 A @ 30 VDC
* Input/Output Wiring: 1 Thermal switch line IN/2 Thermal switch line OUT/3 Normally closed/4 Common/5 Normally Open
* Dimensions: Base Unit 3.5" x 2.2" x 1.6" (88.9 x 55.9 x 40.6 mm) w/ Mounting Bracket 3.5" x 2.2" x 1.9" (88.9 x 55.9 x 48.3 mm) w/ Upgrade & Bracket 3.5" x 2.2" x 2.5"
* Product Safety UL /C-UL Listed, CE, Semi S2
* 1 Heater Jacket: 4815-0103
* 1 Base Controller: 4800-1150
* 1 Communications Module: 4800-0002
* 1 Power cable, 120 VAC, with ground fault leakage circuit interrupter, 6 ft. (1.83 m): 48PWRCORD04
* 1 Heater Cable Exender: 100014813
