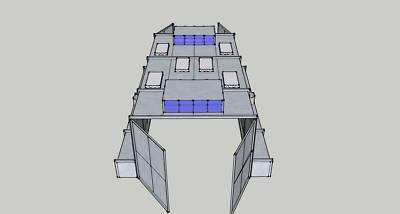

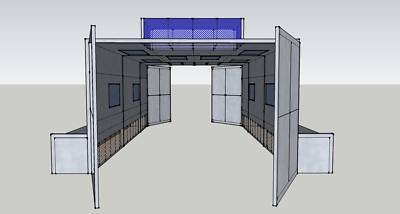

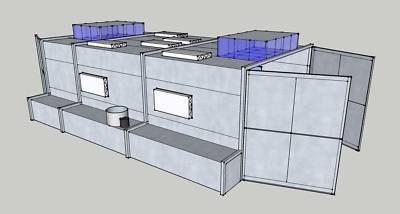

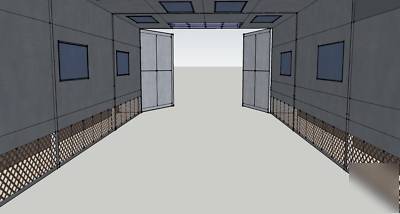

New side downdraft spray paint booth 14W 9T 26D
Reliant National Finance Company
Contact John I. Adams to discuss your financial needs:
Phone: (***)-638-9687 Fax: (***)-888-3416
Email: ****@reliantnational.com
Built to order-usual build time is 3 weeks
working area =14'"w X9't X 26'd CLEAR
overall size =14'6"w X 11't X 27'd
(2) fan size = 24" 7500 cfm per fan
All JC METAL FAB booth's are constructed from 18ga g90 galvanised steel. Panels are pre-punched on 6" centers and flanged. Interior is smooth for cleaning. all header and roof supports are 3x3 square tube painted to match wall panels.
(4) 3x3 square tube support frames
(1) lot of sheet metal panels and trim
(10) 4FT 4 bulb florescent light fixtures mounted behind sealed tempered glass
(2) 24" tube axial fan 2hp tefc 3 phase motor
(1) set of exhaust and intake filters size 20" x 20"
Companion flange to attach ductwork to fan
