Odm vf 610 - visual red laser fault identifier
ODM Optical Light Source TP-220

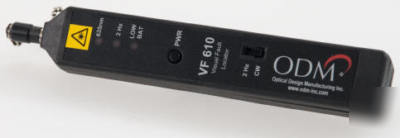

The VF 610 is a high output visible laser designed to locate and identify faults in fiber optic cables. The VF 610 is also useful when identifying breaks in jumper cables, patch panels and other cable splice areas. The VF 610 visual fault locator may be used within the OTDR dead zone to identify breaks and faults in the fiber. Fiber continuity on multimode or singlemode fiber up to distances of 5 km is possible with the VF 610.
This compact instrument includes a 2Hz modulation feature to enhance the identification of problems areas. A 3V CR2 lithium battery providing over 1000 operations provides power to the VF 610. Two version of the VF 610 are offered. The VF 610-SC connector output allows direct connection to the fiber under test. The VF 610 may also be ordered with a 2.5mm universal adapter to accept the SC, ST of FC. The VF 610 includes a padded cordura carry case with belt loop.
