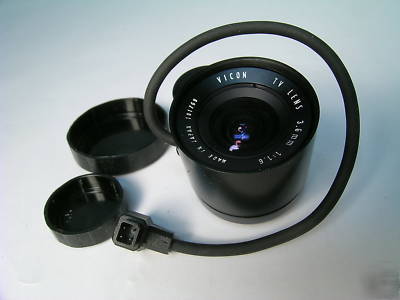

Vicon V3.6-1.6CS-g 1/3" 3.6MM 1:1.6 autoiris lens
DESCRIPTION: 3.6MM 1:1.6 TV LENS AUTO IRIS
The CS-G Series of Autoiris Lenses introduces a new level of
economy and convenience to CCTV lenses. They are compatible
with 1/2- and 1/3-inch-format cameras and are
equipped with CS-type mounts. This configuration allows
The CS-G lenses do not contain their own autoiris level-sensing
circuit; they are intended for use with cameras featuring
built-in autoiris control circuits. The lenses contain a meter
movement which responds to the DC control voltage output
of the camera s autoiris circuit. A built-in neutral-density central
spot filter provides a minimum f-stop of f/125. This provides
a full aperture range of f/1.4 to f/125, making the lens
suitable for use on sensitive cameras in outdoor applications.
The lens cable is supplied with a molded-in connector which
is compatible with the special connector built into many Vicon
camera models. Thus, no connector soldering is required.
