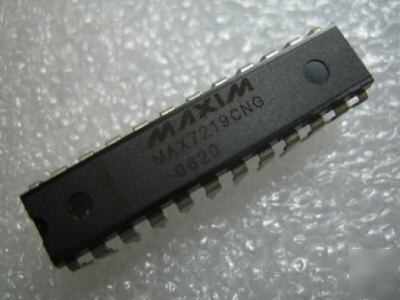

Max 7219 (maxim) 8-digit, led display drivers
http:// /quick_view2.cfm/qv_pk/1339
* Individual LED Segment Control
* Decode/No-Decode Digit Selection
* 150 A Low-Power Shutdown (Data Retained)
* Digital and Analog Brightness Control
* Display Blanked on Power-Up
* Drive Common-Cathode LED Display
* Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221)
* SPI, QSPI, MICROWIRE Serial Interface (MAX7221)
* 24-Pin DIP and SO Packages
MAX7219, MAX7221: Typical Application Circuit
