New aptech tied diaphragm regulator-AP1506SM/1-stage
New APTech Tied Diaphragm Regulator-AP1506SM/1-Stage

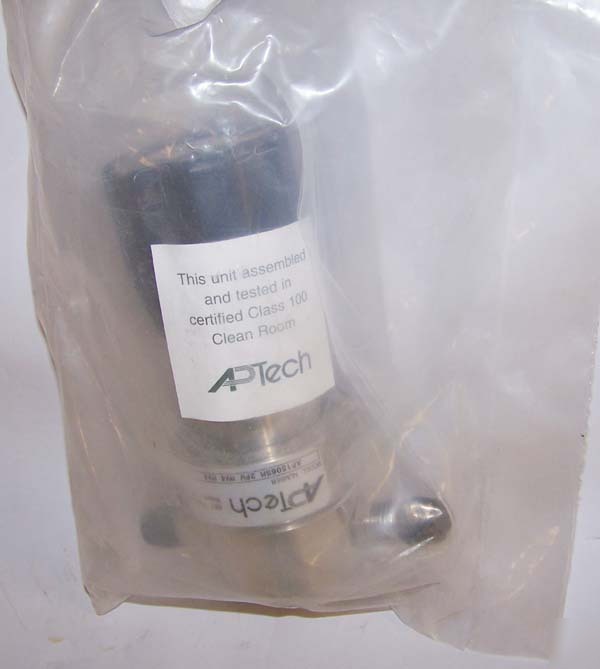

This is a New APTech Tied Diaphragm Regulator. Cosmetically, the item is new and flawless. The photos are of the actual item for sale. Only what is shown in the photos is included.
* Model Number: AP1506SM 2PW MV4 MV4
* Source pressure: Vacuum to 3,500 psig (241 bar)
* Delivery pressure: 2 to 60 psig (0.14 to 4 bar)
* Proof pressure: 5,000 psig (345 bar)
* Burst pressure: 10,000 psig (690 bar)
* Inlet/outlet connectors 1/4 or 3/8 inch face seal or tube weld
* Flow coefficient (Cv) 0.09
* Internal volume 0.51 in3 (8.4 cm3)
* Operating temperature -40 to +160 F (-40 to +71 C)
* Surface finish 15 in. (0.4 m) Ra max standard;
* 10 in (0.25 m); 7 in (0.18 m); and 5 in (0.13 m) optional
* Outboard leakage 2 x 10-9 sccs He at 1,500 psig inlet pressure
* Leakage across seat 4 x 10-8 sccs He at 1,000 psig inlet pressure
* Delivery pressure rise 0.25 psig per 100 psig source pressure drop
