Ducommun 6ITE6H24 SP6T 22GHZ rf switch sma type 24V dc

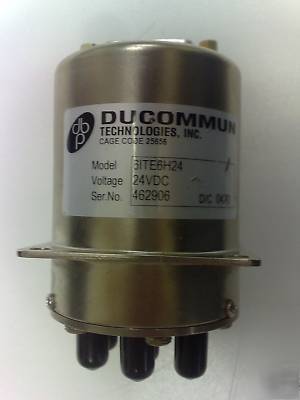

Hello! The Action is for one NEW Ducommun 6ITE6H24 SP6T 22GHz RF Switch.
The unit is SP6T ( 6 to 1) SMA Type RF Switch. The Model Number is 6ITE6H24.
The IT Series features SMA connectors and a frequency range of DC to 18 GHz. Operation is by individual solenoids and 50 ohm internal terminations.
The ITE Series also features SMA connectors and a frequency range of DC to 22 GHz.
Both series are available with normally open, latching self cut-off, or pulse latching functions.
This switch is used in systems where RF sources cannot tolerate an open circuit load condition.
Operating Temperature: -25 C to +65 C ambient
Operating Life: 1,000,000 cycles min.
Switching Sequence: Break Before Make
The link of spec: http:// /pdf/DBPM_page_37-38_IT_Series.PDF
