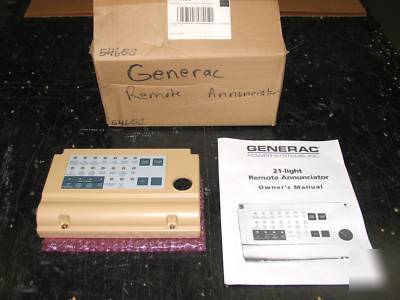

Generac generator remote display annunciator monitor 21
The Remote Annunciator Panel provides remote monitoring and annunciation of up to 18 generator parameters using LED s located on the annunciator keypad. It also provides two system level warnings which are System Ready and Communications OK.
The Relay panel has up to 8 selectable functions on form A relays, and multiple relay panels can be connected for all 18 generator parameters.
The specific faults can be selected using either the DIP switches located on the annunciator circuit board or through a computer via the RS232 connection on the circuit board. All relays are energized on power up and open during a fault condition.
Communication is via a RS485 serial data link and power is supplied by the generator battery (+12 VDC or +24 VDC)
Note: These units are only compatible with the H-series generator controller (70-150 kW)
Operating Temperature.........................................................................................................................................................................-25 C to 60 C
Humidity..............................................................................................................................................................................0 to 95% Non-Condensing
Power Supply.........................................................................................................................................................................................+12 or +24 VDC
Power Usage...........................................................................................................................................................................................6 Watts typical
Power Supply......................................................................................................................................................................................Generator Battery
Communication Line...........................................................................................................................RS485 fully isolated twisted pair cable with shield
Maximum Cable Length...................................................................................................................................................................................4000 feet
Relay Output..............................................................................One NO contact (Engergized when annunciator is powered and no faults are present)
Relay Contact Rating.............................................................................................................................................................................30 VDC, 1 amp
Spare Keypad Switch - Can be used to implement a remote start function. (Model 005464 only)
