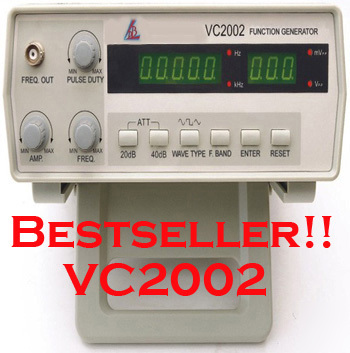

New 1 ldb-VC2002 function generator 0.2HZ to 2MHZ
Product Description
The key features
* Output wave-form such as sine, square, rectangle, sawtooth and triangle waves.
* frequency and amplitude can be adjusted.
* 4 or 5 digit LED display.
* Range from 0.2Hz to 2MHz.
* stability and low cost.
* Convenient and safe to operate
General Specifications
* Power supply: 110V/220V 50Hz/60Hz
* Size: 270mm x 215mm x 100mm
* Weight: 5 lbs
* Working temperature: 0 C ~ 40 C
Technical Specifications
* Frequency range: 0.2Hz ~ 2MHz. Seven ranges: 0.2Hz ~ 2Hz, 2Hz ~ 20Hz, 20Hz ~ 200Hz, 200Hz ~ 2KHz, 2KHz ~ 20KHz, 20KHz ~ 200KHz, 200KHz ~ 2MHz.
* Output signal wave form: sine, square, rectangle, sawtooth and triangle waves.
* Output signal amplitude (peak-peak value):
* Non-attenuate (1Vp-p ~ 10Vp-p) 20% continuously adjustable.
* Attenuate 20dB (0.2Vp-p ~ 2Vp-p) 20% continuously adjustable.
* Attenuate 40dB (20mVp-p ~ 200mVp-p) 20% continuously adjustable.
* Function output symmetry adjust scope: 20% ~ 80%
* Sine wave distortion : less than 2%.
* Triangle wave linear: more than 99%.
* Square wave rise edge times: less than 100ns.
* Square wave fall edge times: less than 100ns.
* Square wave rise and fall pulse: less than 5%Vo.
* Measurement error: less than 0.5%.
