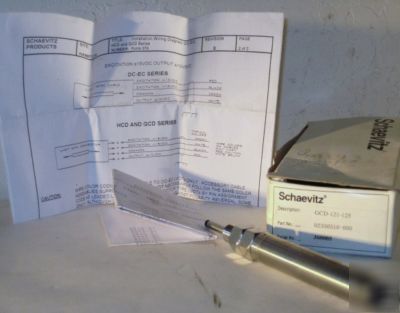

New schavitz lucas gcd-121-125 02350510-000 lvtd sensor
* Model / Part # 1: GCD-121-125 (GCD121-125) (GCD-121125) (GCD121125)
* Model / Part # 2: 02350510-000 (02350510000)
* List Price: Approximately $550
* Description: LVTD Sensor w/Connnector (no cable), Gauge Head, 15VDC Range, 0.125" (inch) Process Measurement
Stainless steel construction enables the GCA/GCD Series gauge head to perform in environments containing moisture, dirt and other contaminants. Electronic components are hermetically sealed for added protection against hostile conditions. These are heavy duty, long stroke units with ranges up to 2.0" (50mm). Maximum spring force is typically 8 oz (226.8g), dependent upon probe position.
The working end or probe has a removable chrome plated, hardened tool steel tip threaded to the probe with a 4-48 UNF-2A threading. Schaevitz replacement and alternate contact tips are available (see page 100 Schaevitz Catalogue). Tips are also interchangeable with AGD dial indicator tips. Internal construction prevents the core and shaft from rotating as they move longitudinally. Units terminating into connectors allow for easy cable replacement if damage should occur. Installation and adjustment are facilitated by external threading; locknuts are provided.
GCA/GCD Series gauge heads are available in AC and DC versions. AC-operated units utilize external signal conditioning; DC-operated units incorporate the core, LVDT and all necessary electronics in one housing. Use of monolithic, surface mount circuitry eliminates most of the volume, weight and cost of conventional AC excitation, amplification and demodulation equipment.
* CE compliant (DC models)
* Resistant to harsh environments
* Electronics hermetically sealed
* Calibration certificate supplied with every gage head
* Compatible with all Schaevitz signal conditioners.
* In-process measurements to close loop with PLC or CNC controller
* Environments requiring hermetically sealed transducers
* High temperatures (300 F for AC units)
