Trane centravac 750 ton chiller control panel

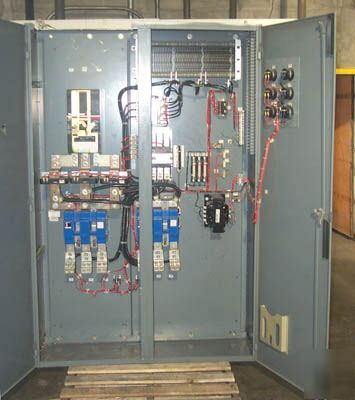

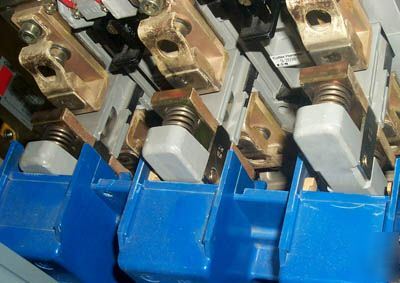

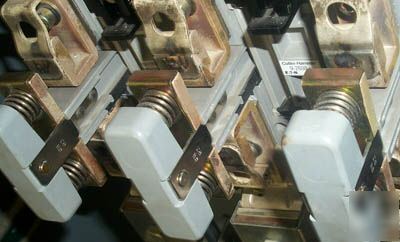

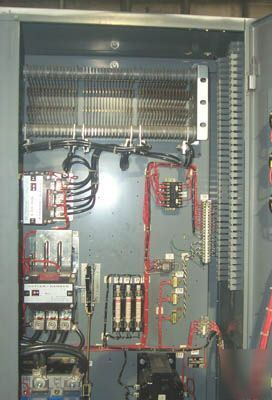

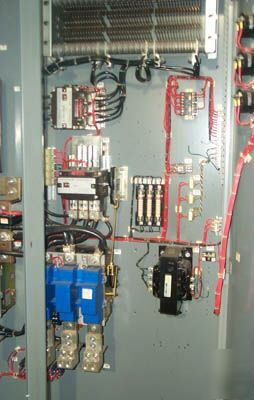

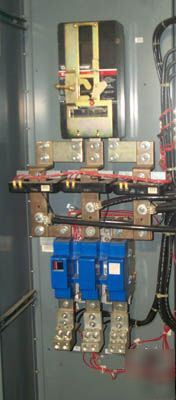

Trane Centravac Control Panel for 750 Ton Chiller. Overall dimensions: 18" x 56"wide x 84" tall. This panel appears complete amd consists of the following components. Two Cutler-Hammer # 10-5822 Nema 6 540amp 400hp motor starters. One C-H C83 2 LN 1 Ser C1 350amp locked rotor contactor and one C-H C10FN3 Ser B1 Nema size 4 starter. One C-H # NS 36120YA 1200amp molded case breaker TYRNS-Y. There is also one Industrial Controls 3.0kva transformer and three C-H 1500:1 current transformers. There are three 0-600V AC meters and three 0-1500A meters on the door. There are also heater coils in top of the enclosure. The wiring appears to be intact and the contacts are very good on the size 6 starters and probably average on the size four contactors. Welcome to inspect.
