Advanced motion controls 12A8K analog servo drive brush
Advanced Motion Controls 12A8K Analog Servo Drive Brush

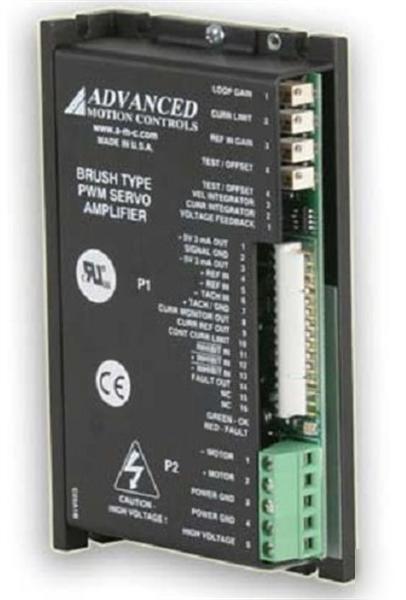

Advanced Motion Controls 12A8K Analog Servo Drive
The 12A8 PWM servo drive is designed to drive brush type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14- turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.
* DC bus voltage 20-80 VDC motor supply
* Four Quadrant Regenerative Operation
* DIP Switch Selectable Mode
* Differential Input Command
* Digital Fault Output Monitor
* On-Board Test Potentiometer
* Offset Adjustment Potentiometer
* Directional Inhibit Inputs for Limit Switches
