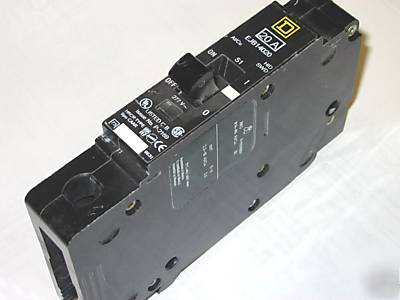

New EJB14020 square d 1P 277V 20A 100,000 breaker new
EJB14020 SQUARE D 1P 277V 20A 100,000 BREAKER
BRANCH, THERMAL MAGNETIC; 1 POLE;
120/240/277 VAC AT 50/60 HZ (UL/CSA); 20 AMPERE AT 40 DEG C;
INTERRUPTING RATING 100 KILOAMPERE AT 120 VAC, 65 KILOAMPERE AT 120/240/277 VAC;
WIRE SIZE 14 TO 6 AWG (ALUMINUM/COPPER); BOLT ON MOUNTING;
SIZE 0.98 INCH W X 4.05 INCH D X 5.66 INCH H;
APPROVAL UL; USED ON MERCHANDISED NF PANELBOARD; EJB MODEL; FRAME TYPE E
CAN USE IN PLACE OF: EDB14020, EGB14020. IT JUST HAS HIGHER RATING.
Continuous Current Rating @ 40 C
D Interrupting Level 18 kA @ 480Y/277 Vac
G Interrupting Level 35 kA @ 480Y/277 Vac
J Interrupting Level 65 kA @ 480Y/277 VAC
