Parker compumotor 6K2 2-axis servo motor stepper drive
Parker Compumotor 6K2 2-Axis Servo Motor Stepper Drive
Use the links below to View More Images of the Parker 6K2 2-Axis Servo Stepper Controller
Compumotor Parker 6K2 2-Axis Servo Stepper Controller - side view

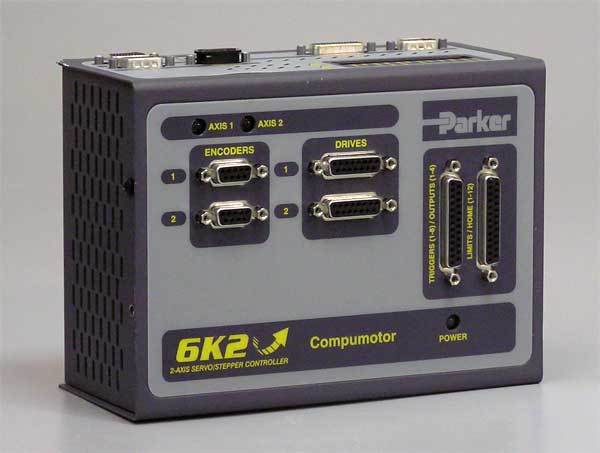

Compumotor Parker 6K2 2-Axis Servo Stepper Controller
* 1-8 axes of stepper/servo control (any combination)
* Outputs standard +/- 10V or step & direction
* Servo update rates of 62.5 s/axis
* 10 Mbps twisted pair Ethernet
* 1 RS232 port (3 wire) - 9600 or 19200 baud
* 1 RS232/485 port (2 or 4 wire) - 9600 or 19200 baud
* Parker CTC Motion PanelTM, PowerStation and other
CTC touchpanels via Ethernet or RS232/485
* PC-based control via Ethernet
* Fieldbus via Profibus -DP or DeviceNet
* Home, Positive and Negative Limits per axis
* 9-17 fast trigger inputs for high-speed position capture
* Drive Fault output per axis
* Shutdown and Enable inputs per axis
* 12 MHz encoder input for each axis
* Auxiliary encoder input for following
* 12-24 VDC, 32 channel expansion modules
* Up to 256 digital I/O points
* Up to 64 analog I/O points
* All digital I/O is updated every 2ms
* Digital I/O have LEDs for visual reference
* Compatible with Ethernet I/O
