Soler & palau TD250 10" inline duct exhaust fan s&p

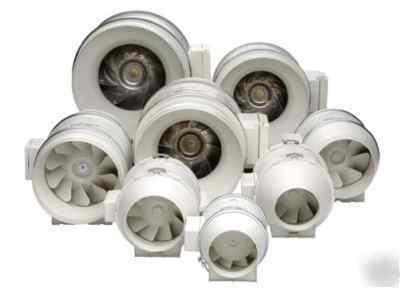

The S&P TD-MIXVENT series of in-line duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact housing size. This makes the TD-MIXVENT series the ultimate solution for small to medium sized ventilation installations, which require a high airflow to pressure ratio and occupy only the minimum space possible. Example: false ceiling voids, cabinets, Radon mitigation and many other limited space environments.
Comes with mounting bracket!!!
Compact Size-TD Fans require minimum space
The S&P TD-MIXVENT series of in-line duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact of casing sizes. This makes the TD-MIXVENT series the ultimate solution for small to medium sized ventilation installations which require a high airflow to pressure ratio and occupy only the minimum space possible. Example: false ceiling voids, cupboards and many other limited space environments.
Easy to Install...fit and forget!
All the models in the TD-MIXVENT range have been designed with the professional contractor/engineer in mind. All models include a removable body feature that enables the motor-impeller assembly to be completely removed or replaced without the need to interfere with the attached ducting.
Multitude of features-high specification
All models within the TD-MIXVENT range incorporate a powerful mixed flow impeller and internal air vanes located at the discharge end of the fan casing. This impeller and guide vane combination provides a smooth laminar air flow which in turn minimizes turbulence and noise, and generates an excellent air flow to pressure performance ratio.
The MIXVENT system has been designed to complement the TD-MIXVENT range of in-line fans. All of the TD-fans include the combination of a powerful factory motor matched to a mixed flow impeller. This motor and impeller combination enables the TD-fans to deliver high airflow performances with minimum noise generation against high static pressures typically found in ducted ventilation systems. The unique design of the support brackets, allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting therefore, facilitating any installation or maintenance. The internal aerodynamic design of the TD-MIXVENT fan enables the unit to generate large air volumes and pressures with the minimum of in-duct or radiated noise. As an additional standard advantage, TD-MIXVENT fans are fitted with a direct connection two-speed motor. In addition, all motors are suitable for speed control regulation using electronic or auto-transformer controllers. The TD-fans offer the ideal in-line duct fan solution for a wide range of HVAC ventilation applications.
The TD-MIXVENT models 100, 100x, 125, 150, 200 and 200x are manufactured in tough reinforced plastic, models 250, 315, 355 and 400 have a metal casing and are finished in a tough epoxy-polyester paint coating. The TD fan duct connection flanges are manufactured from reinforced plastic, except for models 200, 200x, 250, 315, 355 and 400 which are constructed from epoxy-polyester coated metal.
The low profile of the fans in the TD-MIXVENT range makes them the ideal product for installations with low height limits, such as the case of suspended ceilings.
TD-Mixvent Technical Brochures:
Click here to download a technical brochure about this product.
Click here to download an extended brochure of the TD Range of products.
Click here to download a product specific submittal sheet.
Click here to download the installation instructions for this product.
This fan works great with Dayton, hurricane, powerventpro, grotek, hydrofarm, fr, hps, metal halide, cloning, sunlight supply, hortilux, agro, sunmaster, gavita, carbon filter, scrubber, range hood duct booster, AXC, powergrow, fertilizer, guano, ph, ec, diamond, radiant, super sun, co2, pl grow light, heat, inline, in line, HVAC, AC, Squirrel cage fan, Bloom, HPS, high pressure sodium, Green Air Products, PH soil tester, PH tester, Clonex, clone, nutrients, TDS meter, mylar, aeroponic, rockwool, Grodan, Elicent, grow light, green house, hydroponic, hydroponics, fantech, inline fan, bloombox, quick grow, and quickie type systems radon.
