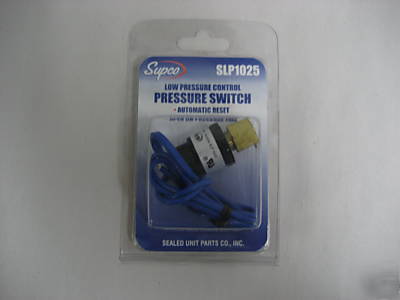

Supco SLP1025 low pressure switch
Low Pressure SPST open on pressure fall
Snap acting stainless steel hermetically sealed sensor (SHP, SLP & SFC)
Small size and light weight for direct mounting
Excellent set point repeatability / stability
Pressure Range: 0 to 650 PSI
Life @ Rated Load: 100,000 cycles
Rated Voltage: 50 / 60 Hz, 24 / 120 / 240 Volts (6 RLA, 36 LRA)
Temperatures: Ambient 20 F to 176 F (-30 C to 80 C). Fluid 60 F to 250 F (-50 C to 120 C).
Specifications/Competitive Comparison -Low Pressure
KLIXON PART NO. PS80-K2-F0307-025-005
JOHNSON CTRL PART NO. P100AP201C
