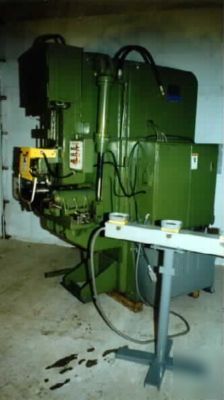

20 ton pines vertical tube bender
CAPACITY: 20 TONS @ 2000 PSI
2" OD X .083" WALL THICKNESS
MAX. RAM STROKE: 12"
MAX. OPEN HEIGHT: 14-1/4"
RAM SPEED: 400/200 IPM DOWN, 480 IPM UP
TUBE SIZE RANGE: 1/2" TO 2" OD
CAPACITY, MAX. STEEL TUBING: 2" OD X .083 IN. WALL
CENTERLINE RADIUS RANGE: 10" MAX./5" MIN.
MAX. BEND ANGLE: 165 DEGREES
WORKING HEIGHT: 39" FLOOR TO DIES
HYDRAULIC DATA: 20 HP, 1170 RPM, 550-3-60 MOTOR
& 21 GPM VICKERS PUMP, 2000 PSI,
90 GALLON RESERVOIR
APPROX. DIMENSIONS: 7'-5" H. X 7'-2" RL X 3'-4" FB
APPROX. WEIGHT: 8,500 LBS.
EQUIPPED WITH: 10 STATION TURRET INDEX CONTROL
240 VOLT STEP-UP TRANSFORMER TO
RUN 550 VOLT MOTOR
AUTOMATIC LUBRICATION SYSTEM
MOTOR: 20 HP
