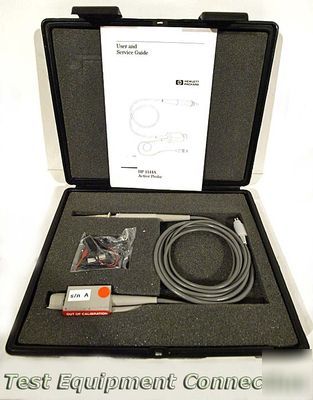

Agilent hp 1144A active probe 54542/40/22/20A
* DC to 800 MHz probe bandwidth
* 40 Vdc + peak ac maximum input voltage
The Agilent 1144A active probe provides an excellent combination of high bandwidth, high input resistance, and low input capacitance. This combination is superior to that of passive divider probes because it provides minimal circuit loading at high and low frequencies. As signal speeds increase, passive divider probes may not deliver the performance needed. This can result in waveshapes that do not represent the actual signal.
To help you minimize circuit loading, the Agilent 1144A boasts a 800 MHz bandwidth, 1 Megohm input resistance, and 2 pF input capacitance. It can be connected to any instrument with 50 inputs. An external 50 termination can also be used with high impedance inputs.
Versatile accessories allow for easy connection to your device under test. For example, the dual lead adapter combines with the two mini-pincher tips to provide a solid connection to 0.050 inch pitch surface mount devices for hands-off probing. Also, the ground bayonet has a short ground lead to minimize measurement errors such as ringing, caused by parasitic inductances.
