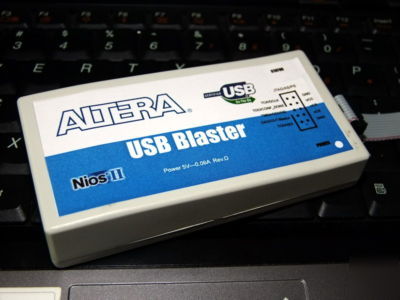

Altera usb blaster programmer cpld fpga-deluxe
The Deluxe Version of Altera programmer!!
altera - DSCF0459-1.JPGaltera - DSCF0461-1.JPG
altera - DSCF045511.JPGaltera - DSCF0490.JPG
Lastest design to guarantee the high performance and stablity!
Supported target voltage : 1.8V-5V
CPLD MAX 3000A MAX 7000A MAX 7000B MAX 7000S MAX 9000 MAX 9000A and MAX II.
FPGA Stratix Stratix II Stratix GX Cyclone Cyclone II Cyclone III ACEX 1K APEX II APEX 20K APEX 20KE APEX 20KC FLEX 10K FLEX 10KE FLEX 10KA FLEX 6000 FLEX 8000 EPCS1 EPCS4 EPCS16 EPCS64EPC1 EPC4 EPC8 EPC16
Under JTAG mode:Cyclone Cyclone II Cyclone III Stratix Stratix II ACEX 1K APEX II APEX 20K APEX 20KE APEX 20KC FLEX 10K FLEX 10KE FLEX 10KA FLEX 6000,FLEX 8000 MAX 3000A MAX 7000A MAX 7000B MAX 7000S MAX 9000 MAX 9000A and MAX II.
AS mode EPCS1 EPCS4 EPCS16 EPCS64.
PS mode Stratix Stratix II Stratix GX.
Support NiosII embeded core based debug,with this debugger, there will be no warning windows poped up duringthe NiosII debug.
High performance ,10 times faster than ByteBlasterII !!
USB interface with status LED.
3.10-Pin JTAG Connection Cable X 1
