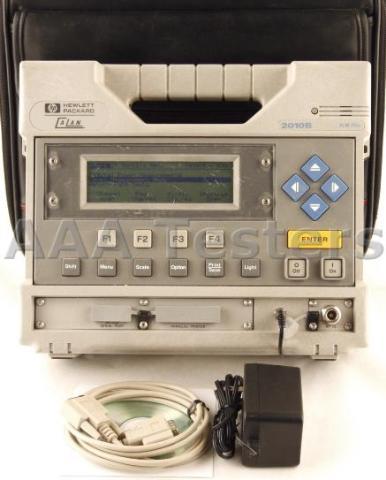

Agilent hp sunrise calan 2010B plus slm catv 2010
* Agilent HP CALAN 2010B SLM Plus
* Installed Option: ABA - Absolute Measurment
* Installed Option: H14 - 50 ohm Type N RF Input w/ Measurements in dBm
Agilent HP Sunrise CALAN Star 2010B SLM Plus CATV Analyzer
H14 - 50 ohm Type N RF Input w/ Measurements in dBm
Time proven product for maintaining the networks of today and tomorrow.
Whether for routine maintenance or new interactive network installations, CaLan products offer a range of solutions. These products cover the entire 5 MHz to 1 GHz frequency range with exceptional speed 60 channels of visual and aural carriers in less than 2 seconds.
This SLM offers built-in comparison and analysis capability as well as the standard signal level measurements. It can also receive ingress data transmitted by the 3010H.
Cost-Effective Signal-Level Measurement
Digital signals cannot be measured with conventional methods used for video carriers because their power is spread over a band unique to each form of digital signal. CaLan products incorporate a digital signal measurement capability technicians need only enter the center frequency, span and format for each digital signals in the unit s channel table. The family also provides accurate average power measurement for return path TDMA (bursted) carriers.
Digital signal power is the total average power over a channel bandwidth around its center frequency. The 2010 can adapt to the unique bandwidth power characteristics of digital signals to make measurements as simple as reading a number on the display.
The 2010 can store up to 90 history files in any one of six formats: level measurements, normalized channel scan traces, sweep traces, spectrum scan traces, and ingress measurement results. Each file includes time and date stamps with a 40-character, user-defined label.
Digital Signal Power Levels Formats: QAM, QPR (DMX), QPSK, and VSB, bursted
Amplitude Accuracy: 1.5 dB (typical)
Burst repetition rate: <1.5 sec
Tuning Configuration: Standard, off the air, HRC, IRC, PAL, SECAM, user-defined
Video bandwidth 300 kHz, automatic 10 Hz C/N
Amplitude Accuracy For Sweep and Carrier Measurements
Calibrator: 0.25 dB at 113.36 MHz, 0.2 MHz
Input Match: 0 dB attenuation, >14 dB; all other settings, >20 dB
Capture Ranges: < 100 Sec - < 1 Sec
Sec in decades, < 3 Sec and > 3 Sec
Maximum TDMA Pulse Width Not Captured: >500 mSec
Accuracy: 0.2%, 30% of reading
