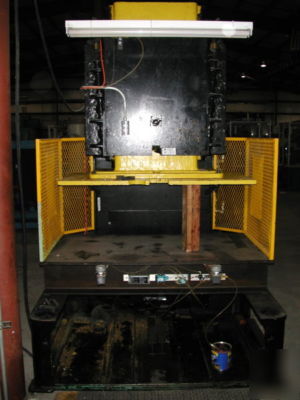

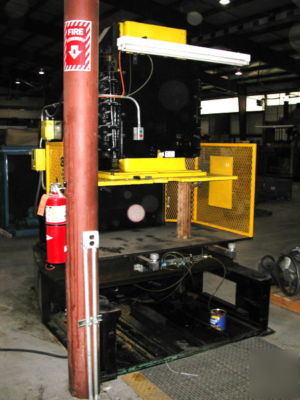

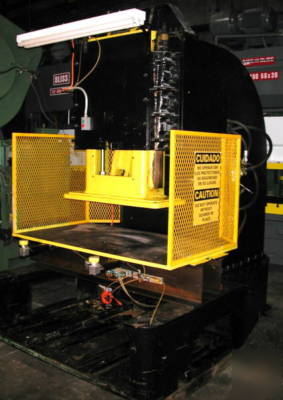

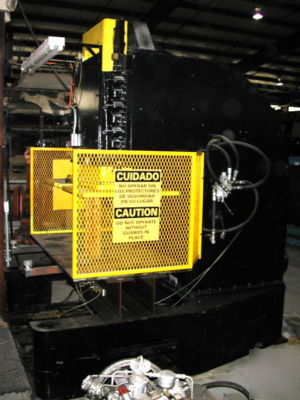

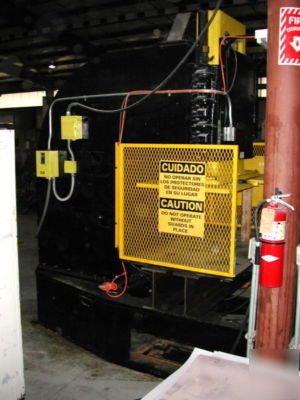

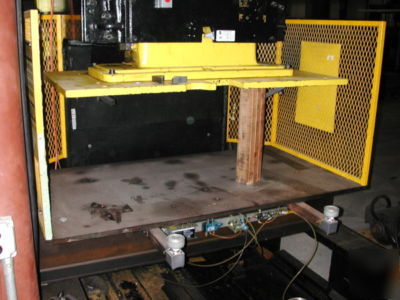

100 ton "black" gap hydraulic press
MAX. CAPACITY: APPROX. 100 TON
MAX. STROKE/EST. SPEED: 14-1/2" STR./290 IPM-DOWN,175 IPM-UP
DAYLIGHT: 25-1/2" TO BED PLATE(44" OVERALL)
CURRENT BED PLATE: 1" X 66" X 36" (ON 12" I-BEAMS"
OVERALL BED FRAME: 70" RL X 54" FB(W/GAP IN BETWEEN)
RAM AREA: 40" RL X 16" FB-GIBBED GUIDED
RAM BOLSTER: 1" X 56-1/2" RL X 29" FB
DISTANCE FLOOR TO BED: 34" (COULD BE ADJUSTED)
THROAT DEPTH: 24-1/2"(CENTER OF RAM TO FRAME)

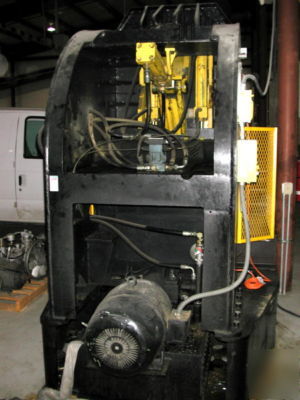

HYDRAULICS: 25 HP, 220/440, 1200 RPM MOTOR WITH
RACINE PUMP AND TANK

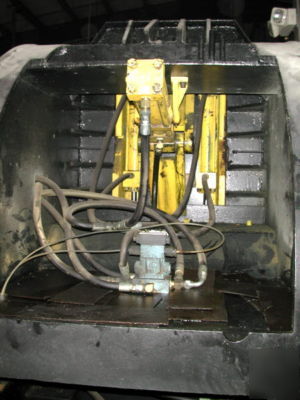

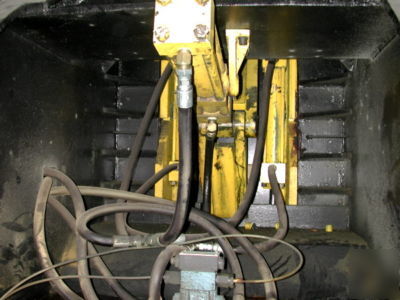

*EQUIPPED WITH: HYDRAULIC-MECHANICAL LINK ARM TO RAM
+(2) 4" DIA. DOWN ACTING HYDRAULIC CYLINDERS

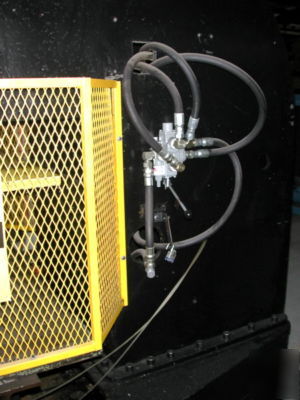

CONTROLS: HAND LEVER DIRECTIOHAL VALVE
APPROX. DIMENSIONS: 9'2" HIGH, 6' RL, 9' FB
APPROX. WEIGHT: 15,000 LBS.
FLOOR STANDING
*NOTE: THIS PRESS MAY BE INSPECTED UNDER POWER ON OUR FLOOR
CONDITION: VERY GOOD!
LOCATION: ANN ARBOR (not Chicago)
