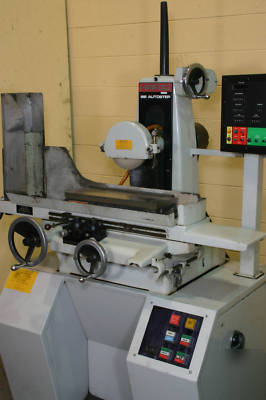

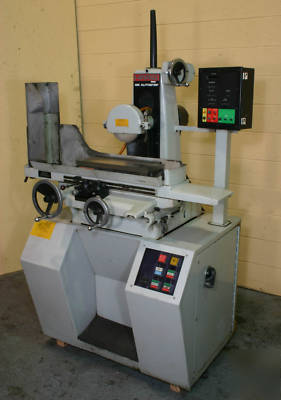

6" x 18" harig model #618 auto step surface grinder
6" X 18" HARIG MODEL #618 AUTO STEP SURFACE GRINDERSERIAL ................................ 5301-W
MODEL ................................. HARIG AUTO STEP
YEAR NEW .............................. 1982
CAPACITY .............................. 6" X 18"
LONGITUDINAL TABLE TRAVEL ............. 18-3/4"
CROSS TRAVEL .......................... 7-3/4"
MAXIMUM UNDER WHEEL ................... 12"
AUTOMATIC CROSS FEEDS, VARIABLE ....... .0" TO 3/32 PER PASS
HYDRAULIC TABLE SPEED ................. 0 TO 70 FPM
DISTANCE UNDER NEW WHEEL .............. 12"
DIAMETER OF WHEEL ..................... 7" X 1/2" X 1-1/4"

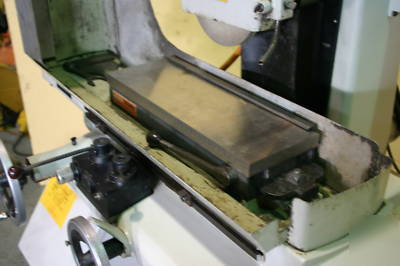

CHUCK (WALKER FINE LINE) .............. 6 "X 18"
AUTOMATIC DOWN FEED ................... 0.0001 TO .0099 IPR

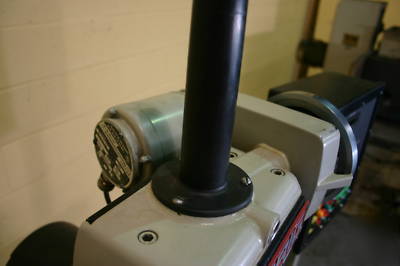

POWER SPINDLE ELEVATION ............... 2-1/2 IPM
DOWN FEED OF GRINDING WHEEL ........... 0.9 IPM

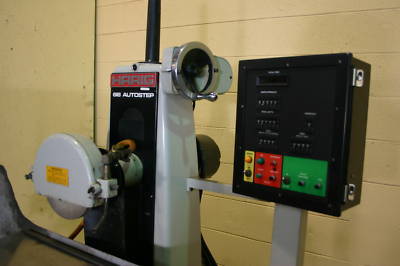

THUMBWHEEL TO PRE SET DEPTH ........... 5-DIGITS
THUMBWHEELS FOR SETTING DOWNFEED ...... 2 DIGITS
WORK LIGHT ............................ YES
MOTOR ................................. 1 HORSEPOWER
