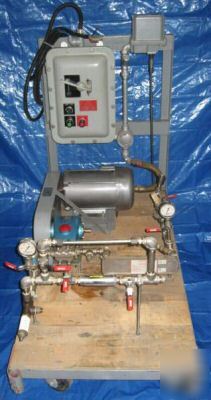

High pressure jet fuel pumping system unique
High Pressure Hazardous Location
Fluid / Fuel Refrigerated, Filtered , Regulated
Cat 9 Triplex (Model 271) 1500 PSI Pumping System
Baldor Hazardous Location 5hp 3ph 1725 RPM 230/460 VAC Motor
Designed for Pumping Jet Fuel under High Pressure

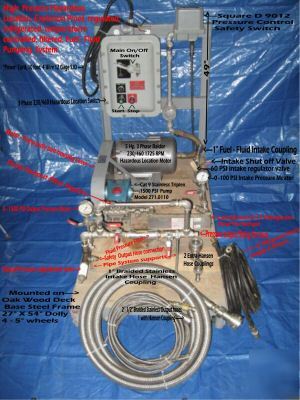

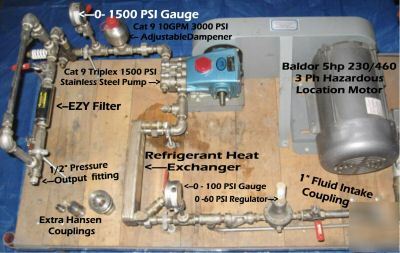

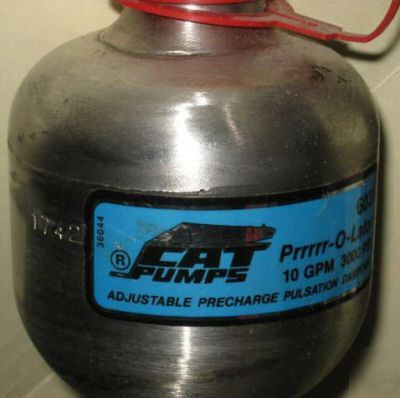

The way it works: fuel passes through a 0-60 regulator valve to a R12 Refrigeratored Heat Exchanger to a 1500 PSI CAT 9 High Pressure Stainless Steel Pump. The fuel then passes through a 10 GPM Dampener and EZY filter to a 1/2" braided Stainless Steel hose with a Hansen coupling.

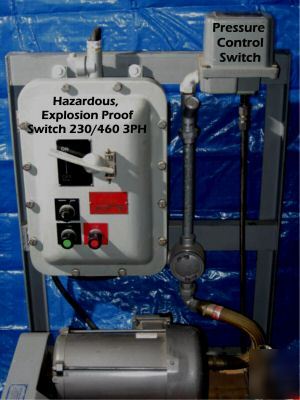

The Pumping system is controlled by a Heavy Duty Hazardous Location, Explosion Proof 230/460 VAC 3ph Switch and a Squar D safety pressure switch. The eletrical system can be either 230 or 460 VAC. The power sources is a 5hp 230/460 VAC 13 / 6.5 Amp Motor

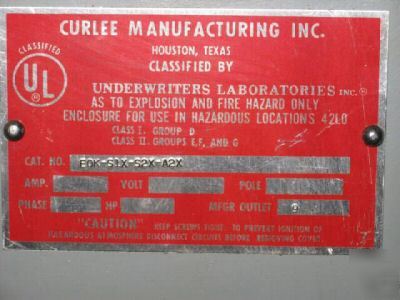

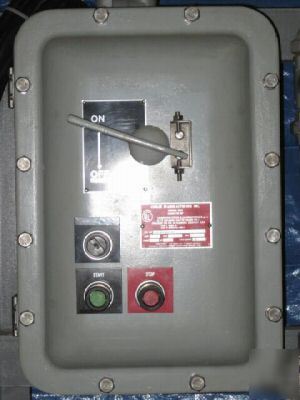

* Heavy Duty 230/460 Hazardous Location Switch

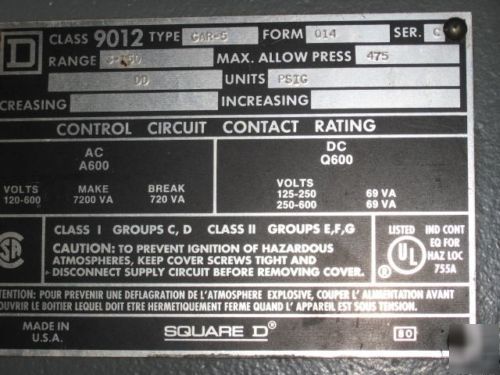

* Square D Pressure Safety Switch Model

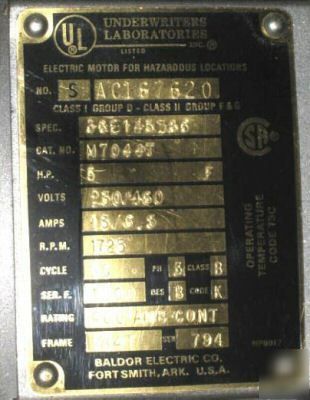

* Baldor 230/460 VAC 5hp 3ph 1725 RPM Motor
* 10 foot 12 Gauge 4 wire grounded power cord
* Explosion proof shielded electrical wiring
* Cat 9 Model 271 Triplex Stainless High Pressure Pump

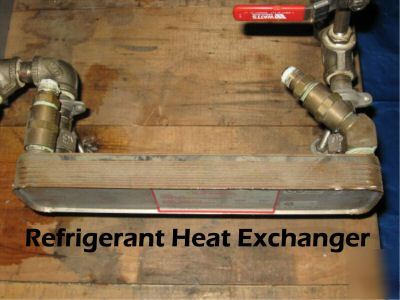

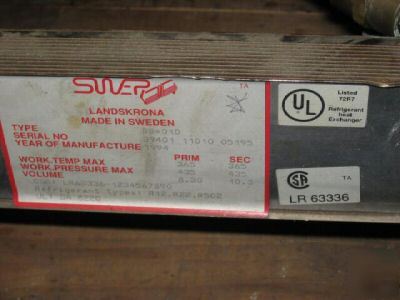

* Refrigerated Heat Exchanger
* 6 Watts Regulator Ball Valves
* 1" X 16' Stainless Steel Braided High Pressure Hose with Hansen Coupling
* 2 - 1/2" X 10' Stainless Steel Braided High Pressure Hoses
* 2 - 1/2" X 10' Refrigerant Hoses
* Super Heavy Duty Long Wearing Components and Construction
* High Quality Detailed Engineering Design
* Heavy Duty 27" X 54" 4 Wheel Cart & Handle
The high pressure pumping system is in excellent like new condition with very little use.
Power applied to system. Motor and Pump work
