Lot of 3 metrologic MS9540 laser barcode scanner black

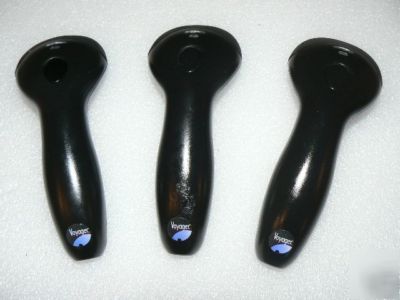

Lot of 3 Black Metrologic MS9540 Laser Barcode Scanner.
These recent off-lease are VERY clean. If they are used they show no signs of it.

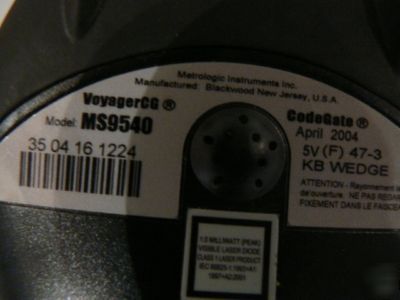

MS9540 VoyagerCG is an advanced single line laser bar code scanner with automatic activation and sophisticated data transmission via Metrologic s proprietary CodeGate technology
The Metrologic Voyager and VoyagerCG hand-held, single-line scanners have united form with function to become the industry benchmark for value and performance. These sleek scanners feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.
VoyagerCG also includes Metrologic s patented CodeGate technology which easily completes data transmission with the push of a single button. For presentation scanning, Voyager and VoyagerCG come with a stand and in-stand-auto-detection technology.
Use scanner as either a hand-held device or a fixed presentation scanner when mounted in
CodeGate data transmission
Ideal for menu-scanning applications and when combined with the Auto-Trigger, VoyagerCG is the most intuitive bar code scanning system in the industry
Equipped with a high-visibility laser allowing the user to place the line on bar code
Update firmware from any PC via MetroSet 2 software provided free from Metrologic
Bar code data can be formatted to meet the requirements of host system
Automatic trigger with CodeGate
Decodes RSS-14, RSS Limited and RSSExpanded bar codes
User-replaceable, single cable interfaceto host
Firmware updates via Flash ROM
Custom edit the bar code data
Easy programming using Windows software or bar codes
Supports commonly used interfaces,including Keyboard Wedge and USB
OPOS and JPOS system compatible
Quick Specs (for full specifications, please refer to the download tab. Full specifications can be found in the data sheet or user's guide)
0 mm - 203 mm (0 - 8 ) for 0.33 mm (13 mil) bar codes
64 mm (2.5 ) @ face; 249 mm (9.8 ) @ 203 mm (8 )
72 2 scan lines per second
PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, IBM 468X/469X, Stand Alone Keyboard, USB
Visible Laser Diode 650 nm 10 nm
Sample only, actual colors may vary MS9520/40 is available in a variety of other colors with minimum quantity purchase
Metrologic s MS9540 VoyagerCG offers high performance scanning, a futuristic design and a more intuitive scanning system than other conventional, triggered scanners.
The MS9540 VoyagerCG is designed to replace triggered scanners. In doing so, Metrologic s engineering department incorporated a feature called CodeGate that makes the MS9540 more intuitive to use than a triggered scanner. Using Metrologic s patented auto-trigger, the laser is automatically activated when a bar code is presented, allowing the user to easily select the bar code. Then with a press of the CodeGate button, the data is transmitted to the host system. This unique concept makes VoyagerCG perfect for menu-scanning. When the MS9540 is placed in its stand, CodeGate can be automatically deactivated allowing VoyagerCG to be used as a fully automatic presentation scanner.
VoyagerCG includes the ability to decode the emerging Reduced Space Symbology (RSS). Industries including supermarkets, pharmaceutical, and healthcare are beginning to utilize this new symbology. For those VoyagerCG s already deployed, an online Flash ROM upgrade is available at .
Light Source Visible Laser Diode 650 nm + 10 nm
Laser Power 0.96 mW (peak)
Depth of Scan Field 0 mm - 203 mm (0 - 8 ) for 0.33 mm (13 mil) bar codes
Width of Scan Field 64 mm (2.5 ) @ face; 249 mm (9.8 ) @ 203 mm (8.0 )
Scan Speed 72 + 2 scan lines per second
Scan Pattern Single scan line
Minimum Bar Width 0.127 mm (5.0 mil)
Decode Capability Autodiscriminates all standard bar codes, including RSS; for other symbologies call Metrologic
System Interfaces PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, Non-decode
Emulation, IBM 468X/469X, Stand Alone Keyboard, USB (low speed and full speed)
Print Contrast 35% minimum reflectance difference
Number Characters Read Up to 80 data characters
Roll, Pitch, Yaw 42 , 68 , 52
Beeper Operation 7 tones or no beep
Indicators (LED) Green = laser on, ready to scan; yellow = auto trigger mode active; red = good read
Width Handle - 45 mm (1.8 ); Head - 78 mm (3.1 )
Termination 10 pin modular RJ45
Cable Standard 2.7 m (9 ) coiled; optional 2.1 m (7 ) straight
Input Voltage 5 VDC + 0.25 V
Current - Operating 100 mA typical @ 5 VDC
Current - Standby 22 mA typical @ 5 VDC
DC Transformers Class 2; 5.2 VDC @ 650 mA
Laser Class CDRH: Class II; IEC 60825-1:1993+A1:1997+A2:2001
EMC FCC, ICES-003 & EN55022 Class B
Operating Temperature 0 C to 40 C (32 F to 104 F)
Storage Temperature -40 C to 60 C (-40 F to 140 F)
Humidity 5% to 95% relative humidity, non-condensing
Light Levels Up to 4842 Lux (450 footcandles)
If you have any further questions, please email us.
