Pwm 4A 90° hand torch package-12.5' qd lead set,2-2119
Torch Package with 12.5' Quick Disconnect Lead Set, 2-2119
Performance Proven Replacement for
Thermal Dynamics PWH 4A Plasma Arc Welding Torch
PWH 4A 90 Hand Torch Package with 12.5' (3.8m) Lead
Set with Quick Disconnect Fittings Installed. PWH 4A Plasma Arc
Performance Proven Replacement for Thermal Dynamics PWH 4A
Plasma Arc Welding Torch Package.
Thermal Dynamics part number: 2-2119.
PWH 4A Plasma Torch Specifications:
- 90 Thermal Dynamics PWH 4A Hand Plasma Torch Body -
* 90 Degree (Part No. 8-4015) Water Cooled
* Current Rating 200 Amps (DCSP)
* Coolant Requirements 8,000 BTU/hr (2017 kcal/hr) 1/2 gpm @50 psi (1.9 ipm @ 3.7 kg/cm2)
* Torch Body Length 12-1/4" (311mm)
* Head Diameter 1-1/4" (32mm)
* Head Height 3-3/16" (81mm)
* Handle Diameter 1-3/8" (35mm)
Torch Package compatible with Thermal Dynamics PWH 4A Plasma Arc Welding Torch Packages and Ultima 150 Plasma Arc Welding Systems.

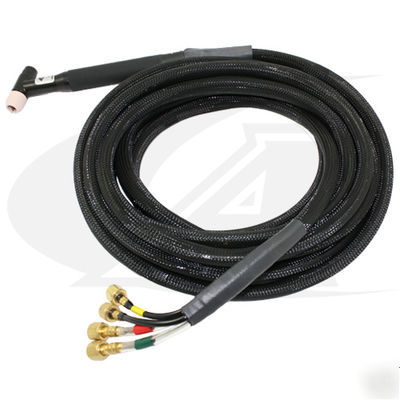

*Note: Image depicts 3A 180 Machine Torch Package with standard 25' lead set.
following Thermal Dynamics part numbers 2-2129, 2-2851, 2-2123, 2-2850, 2-2127, 2-2121, 2-2482.
Thermal Arc Welding System Guides:
PWH 4A Plasma Torch Exploded Parts View
demanding specifications. The parts are engineered to be interchangeable with Thermal Dynamics parts, are not OEM parts and are not endorsed by Thermal
Thermal Dynamics is a registered trademark of Thermal Dynamics Corporation.
Please feel free to contact us for technical articles and operation manuals for our products before purchasing. We also offer our industry leading collection of Welding Guides including "Selecting Tungsten" and "How to Grind Tungsten," and many more!
