8' commercial restaurant ventilation hood system w fans
Email: ****@gmail.com
This is a Basic Type 1 Hood and Fan package. The package includes a Wall Mount Box Canopy Hood with make up air plenum, exhaust fan, supply fan and roof curbs. It does not include the pre-wired electrical panel, Fire Suppression System, or Duct. You can add any of the items for an additional charge.

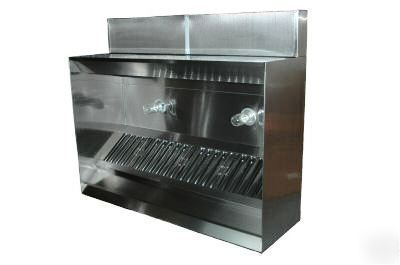

9624EX-1 - 8ft 0" Long Exhaust-Only Wall Canopy Hood with Built-in 3" Back Standoff
FILTERS are Kleen Gard Aluminum Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
Incandescent Light Fixture-High Temp, Bulbs By Others
EXHAUST RISER - Factory installed 10" X 9"
1/2 Pint Grease Cup New Style, Flanged Slotted

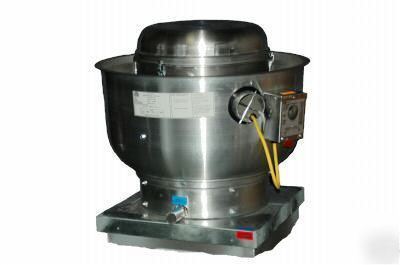

DU85HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch and 15-3/4" wheel.
Exhaust Fan handles 2000 CFM @ -1.000" wc. Fan runs at 1385 RPM.
Exhaust Motor: 0.750 HP, 1 Phase 115 V, 13.0 FLA, ODP (Open Drip Proof)
Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA.)
Wall Mount Bracket - 24.25 " square x 2" for fans with 24.75" square base and with 20" centered square hole.
Wall Mount Construction for Direct Drive Fan. Through-Bolt mount motor for extra support in wall mount application. Vibration isolator mounts not used.
Hinged Base for Curb. Standard Hinge attached to curb. Used on Fans with wheels 20 inches or smaller. 12 GA Galvanized.

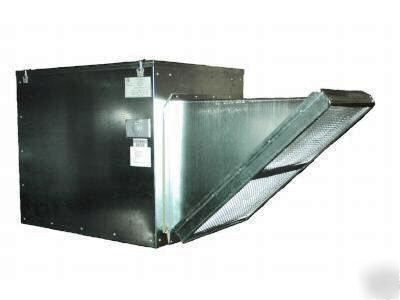

A1-G10 Untempered Supply Unit with 10" Blower in Size #1 Housing
Supply Fan handles 1600 CFM @ 0.500" wc. Fan runs at 744 RPM.
Supply Motor: 0.500 HP, 1 Phase 115 V, 8.0 FLA, ODP (Open Drip Proof)
Down Discharge - Air Flow Right -> Left
Sloped Foam Filtered Intake for Size #1 Modular Untempered Supply Unit. 21.813" Wide x 44.375" Long x 23.375" High. Includes 2" Foam EZ Kleen Metal Mesh Filters.
By Others: Installation, ductwork, patching, all electrical field wiring, start-up & balance, gas or electric shutdown for fire system hook-up, fire system hook-up, fire system chemical agent, NO2 cartridge, field piping, detection and pull station line(s), tests and permits.
