Fingerprint access control + time clock rfid webserver
Fingerprint + Proximity RFID + PIN + Web Server
Latest design with powerful hardware platform
A solid biometric Fingerprint Device
Now you can have highly-secured access control + time clock!
No More Buddy Punching or Illegal Entries

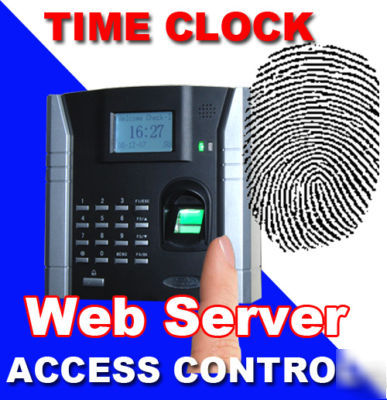

F4-Vista is a professional grade biometric fingerprint access control and attendance time clock. It is a device that has fingerprint + Proximity RFID + PIN inputs for authentication. Developed by one of the top companies in the world, the inside of F4-Vista are a state-of-art, powerful Intel 32-bit embedded stand alone fingerprint module (ZEM500) and a CMOS sensor with automated exposure and intelligent compensation for image distortion. Its fingerprint identification algorithm has been used by more than 50-million machines installed around the world.
With the FAR (false acceptance rate) less than 0.0001%, F4-Vista takes both wet and dry fingers, scans a fingerprint at any angle, i.e. 0-360-deg. in less than 1 second, this in turn will make clocking in and out much faster for your employees and at the same time saving your company time and money.
In addition to the biometric fingerprint and PIN input via the keypad, the new F4-Vista has also a built-in proximity RFID card reader for proximity card input. This feature allows the user to use the unit in applications where the fingerprint collection/verification is not possible (i.e. none touch verification is required) or a combination of authentications is required.
By using F4-Vista as an attendance time clock, the employees clock-in and clock-out is much more accurate than the traditional time clock, you can keep accurate employee attendance records and eliminate both inflated labor or buddy-punching in your company. Its power bundled Time and Attendance management software program allow you to collect, analyzing and generate various type of reports on employee attendance.
By using F4-Vista as an access controller, you can have one of the most secure biometric identification system in place to prevent from illegal access to the protected areas. F4-Vista output can be connected directly to the door lock or via the built-in relay. It also has the standard Wiegand output for forming a multi-door access control system.
F4-Vista can be linked to any PC or PC server via TCP/IP network or RS485/RS232. You can connect up to 128 units in a LAN and managed by a PC server. It has a built-in web server, which allows you to access remotely anywhere with a internet connection. This makes the management extremely easy when away from the office.
The state-of-art technology biometric identification technology now is affordable, it is time to add or replace your traditional time clock to enjoy the benefits of an automated time and attendance tracking system!
* Latest biometric identification technology
* High-speed Bio-key VX8.0 dual engine for fast identification process
* Features both access control and staff time clock
* Linux OS with built-in TCP/IP, RS485/RS232 network connectivity
* Built-n web server for remote access and control
* Built-in proximity RFID reader for proximity card input
* Anti-shaking with optical enhancer fingerprint scanner
* Scheduled short massage and programmable ring bell function
* High-speed USB for record downloading and short-message broadcasting
* Large 4-line bright blue background LCD display
* Double color LED status indicator light
* Built-in wireless door bell included
* Stylish body design, easy to install
* Suitable to small to large size businesses
1500 fingerprints, standalone storage 50000 records
2007 Version ZK Finger algorithm
1:1 or 1:N, fingerprint only, ID number + fingerprint, ID number+ code, card + fingerprint
Identification time<=2s, FAR<=0.0001%,FRR<=1%
Can give alarm when destroying it, illegally open door, threatened by hijackers, and output touch off alarm signals, circumscribed alarm, alarm lamp, alarm lamp or alarm host computer, Wiegand In and Wiegand Out.
Four lines blue LCD, double color LED indicator light, multi-language
12V DC, watchful waiting current<50 mA, working current<400mA
Temperature 0 -45 , humidity 20%-80%
English (other languages avail. with longer lead-time)
Proximity RFID reader, Web-server, Wireless Doorbell, Short message
Workcode, WIFI, GPRS, RIS, Antipass-back
* 1 x 12V DC/3A power adapter (110-240V AC)
* 1 x Set of connection cables
* 1 x Wireless door bell with batteries
* User installation guide+ software CD
